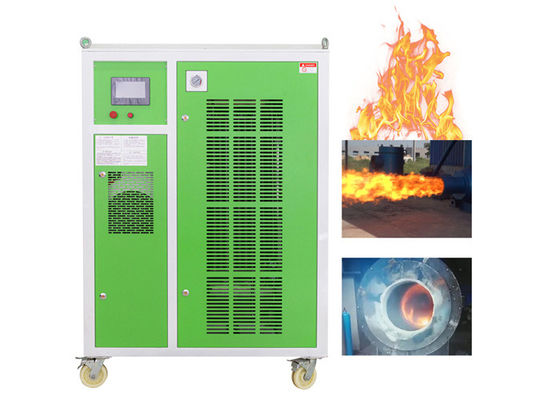

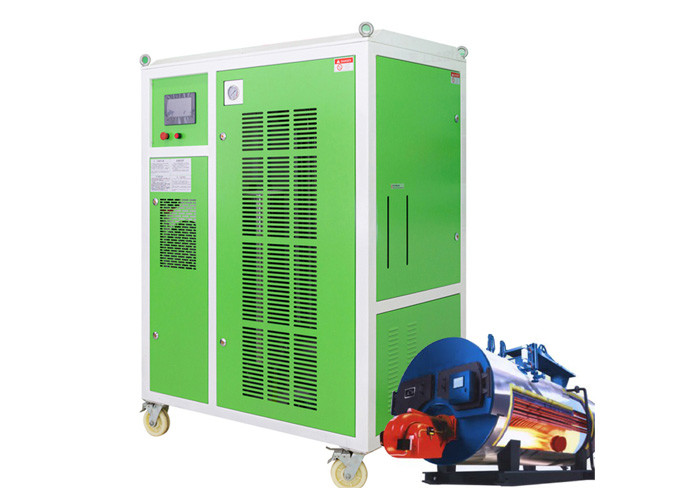

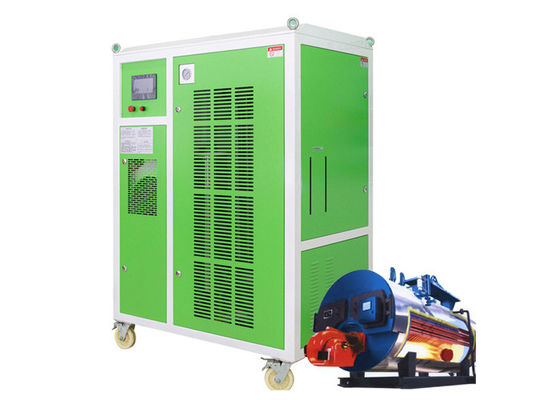

5500l Hho Gas Generator China Oxyhydrogen Machine For Boiler Heating
Oxy hydrogen Machine consumes water and electricity, electrolyze water into hydrogen gas and oxygen gas, we can use H2 and O2 as source of flame replacing LPG, Propane, Acetylene fuel or natural gas or other fuel.It can burst with other fuel together for heating.
Oxyhydrogen Generators' Advantages
Low Cost & Maximum Economy
Oxy hydrogen gas is generated only using electricity and pure water. The cost of electricity and water reduces more than 40% compared with LPG, Propane, and Acetylene fuel.Both economical and practical. Energy Saving more than 30% compared with traditional LPG, Propane, and Acetylene fuel.
High Temperature & high-energy
Oxy-hydrogen flame is straight, little heat loss and high efficiency. The heat of 1kg hydrogen is34000Kcal, triple gasoline. Hydroxide flame’s temperature is up to 2800 degrees, which is higher than conventional liquid gas. What’s more, the temperature is adjustable.
Maximum Safety
hho Gas is light and dissipates rapidly into the atmosphere compared to acetylene, which is dense and seeks ground level. Multiple safety devices, including overheating and in-sufficient water cut-off switches, will automatically turn off power to ensure the safety of both equipment and user. A Healthier Working Environment 0 toxic fumes and 0 emissions of carbon based emissions.
Environmentally Friendly
hho Gas produces zero pollution when burning, while hydrocarbon-based fuel gases pollute the environment.
HHO generator applied in diesel generator will help the dieselgenerator,make complete combustion, and increase fuel
efficiency between 10% to 30%, reducing emission minimum by 60%.
About Structure of Hho Gas Generator

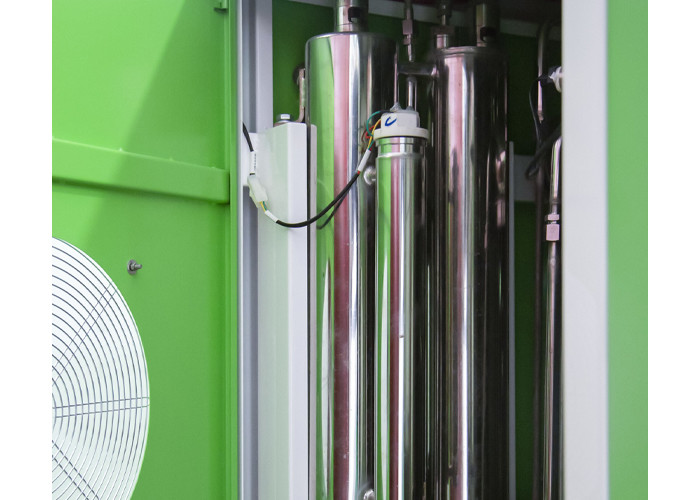

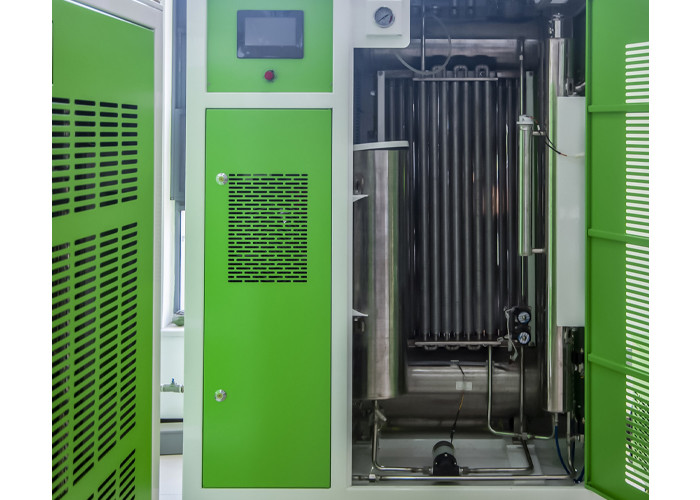

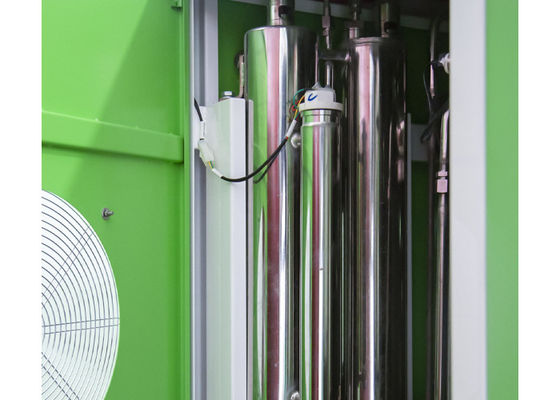

The interior structure of hho generator mainly includes electrolysis cell, cooling system, anti-backfire system, water storage tank, water filling system, power supply system, circuit control system.
Technical Parameter
(The model number refers to the gas output of the oxyhydrogen generator, unit: L/h)
| Model |
OH5500 |
| AC Voltage(V) |
380,three phases |
| Rated Power(KW) |
17 |
| Gas Output(L/h) |
0-5500 |
| Working Pressure(Mpa) |
0.1-0.2 |
| Max Water Consumption(L/h) |
2.8 |
| Water Feed |
auto |
| Dimension(L*W*H-mm) |
1200*670*1700 |
| Weight(kg) |
396 |
| Ventilation Space Requirement(mm) |
400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
