Product Description

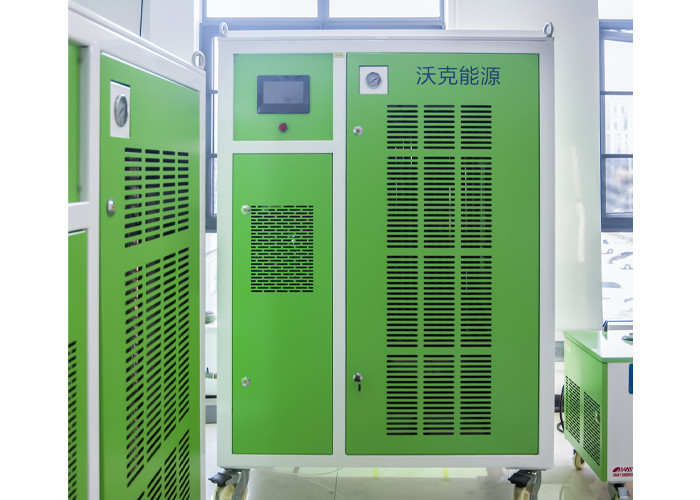

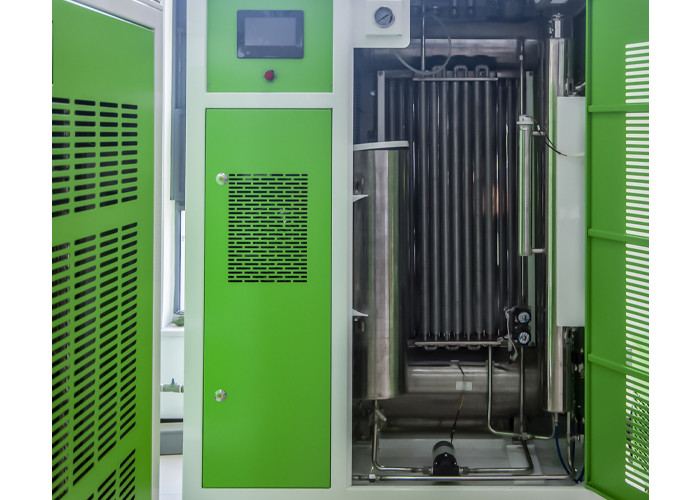

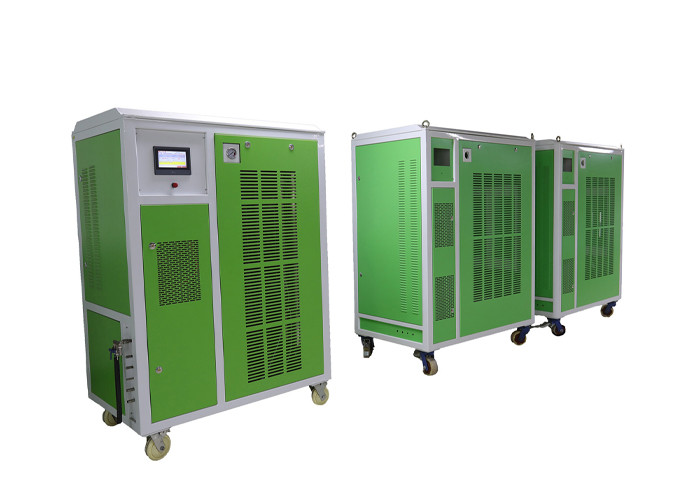

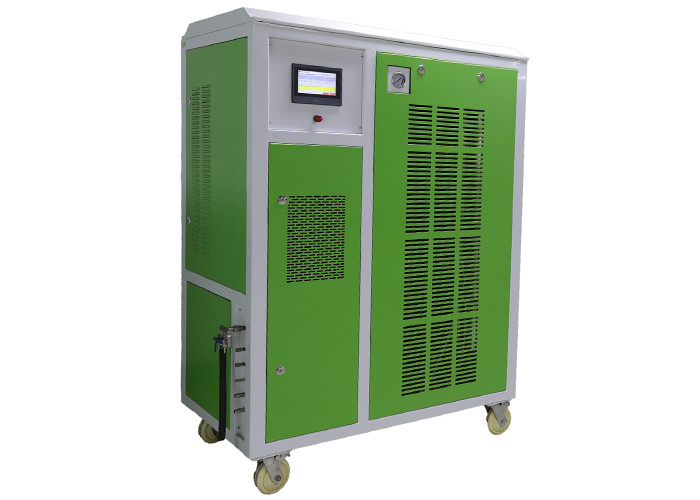

Okay Energy oxy-hydrogen gas cutting machine consists of a gas generator and flame cutting machine. The gas generator produces hydrogen and oxygen gas from water by electrolysis. This system features low operating costs and environmental protection because of no carbon emission of CO2 or poisonous gases. The gas generator can also be connected to a conventional flame-cutting machine. It can cooperate with a manual cutting torch, semi-automatic cutting machine, shape cutting machine, and CNC cutting machine instead of traditional fuel gas.
Technical Parameter
(The model number refers to the gas output of the oxyhydrogen generator, unit: L/h)
| Model | OH5500 |
| AC Voltage(V) | 380,three phases |
| Rated Power(KW) | 17 |
| Gas Output(L/h) | 0-5500 |
| Working Pressure(Mpa) | 0.1-0.2 |
| Max Water Consumption(L/h) | 2.8 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1200*670*1700 |
| Weight(kg) | 396 |
| Ventilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
