About Okay Energy Technology of HHO Generator
1 Automatic Water Level Detection Technology
We design by ourselves, it used for detect the water level of the electrolysis cell and water -deposit tank. When water is too low, the alert lamp is light. When water is lowest, the power supply switches off to proof it.
2 Water Automatic Replenishment Technology
When water of the electrolysis cell is too low, the system will auto pump water from water-deposit tank.

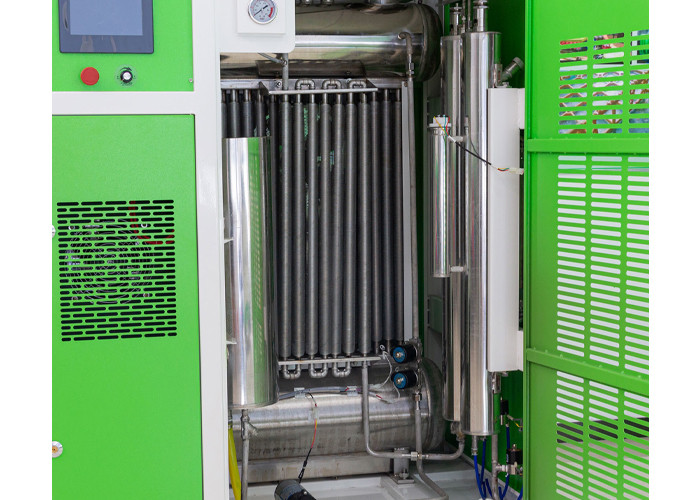

3 High-efficiency Gas Water Separator Technology
This Technology is used to separate the water from gas in order to ensure the gas is pure. If the oxyhydrogen gas has some water even little, the temperature of the oxyhydrogen flame will become lower.
4.Electrolyte-Automatic Cycle Technology
We used static way to realize electrolyte cycle, don't use pump because the pump is a mechanic unit that is easily damaged.
Technical Parameter
(The model number refers to the gas output of the oxyhydrogen generator, unit: L/h)

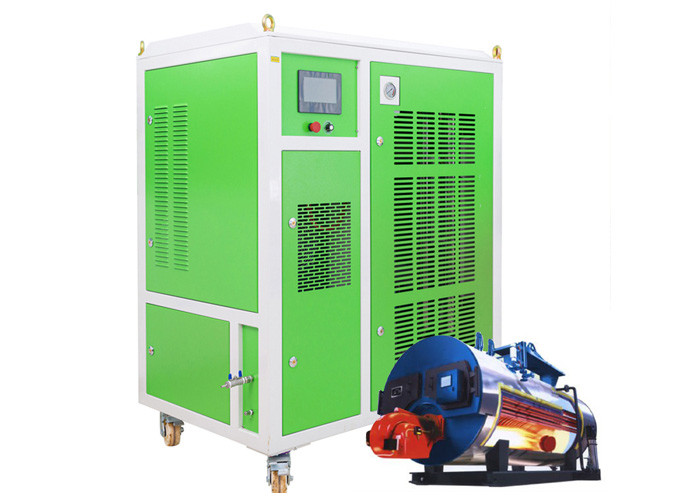

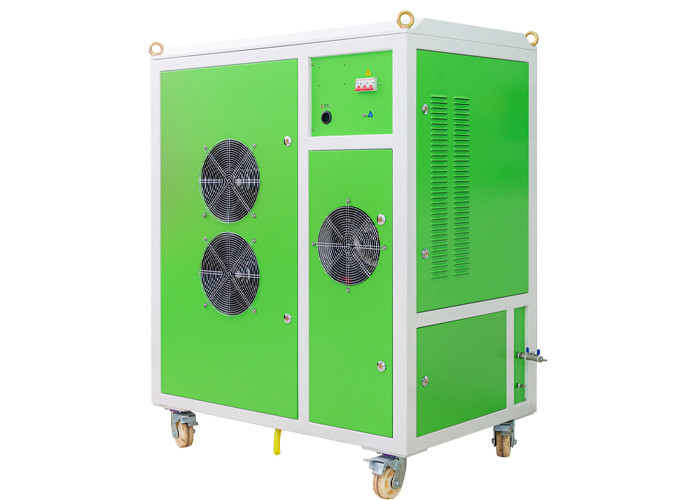

| Model | OH7500 |
| AC Voltage(V) | 380, three phases |
| Rated Power(KW) | 23 |
| Gas Output(L/h) | 0-7500 |
| Working Pressure(Mpa) | 0.1-0.2 |
| Max Water Consumption(L/h) | 4 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1350*670*1800 |
| Weight(kg) | 552 |
| Ventilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
