About Safety of HHO Gas Generator

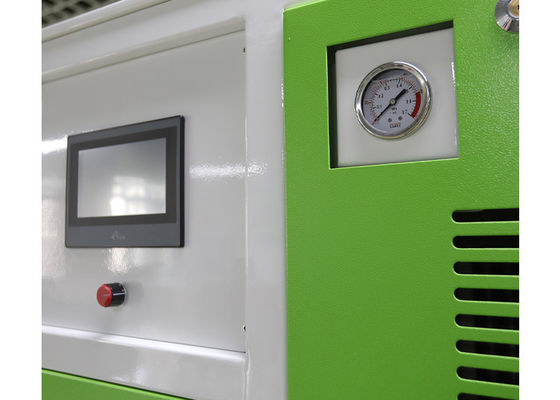

it is very safe to use our machine. We adpoted OKAY unique owned wet-type anti-backfire technology, there are 3 grades anti-backfire devices, 100% stop backfire. There are pressure switch and temperature switch on the cell, if over pressure and over temperature appears, the machine will stop producing gas, and will reminder the user to solve the fault. There are message box on the screen to reminder the operator, it’s very convenient for users to find the possible problems and fault of the machine, which assure the safe operation.If there is abnormal situation, it will shows on the screen of work tip to advise you the next step and how to operate it.
Technical Parameter
(The model number refers to the gas output of the oxyhydrogen generator, unit: L/h)
| Model | OH7500 |
| AC Voltage(V) | 380, three phases |
| Rated Power(KW) | 23 |
| Gas Output(L/h) | 0-7500 |
| Working Pressure(Mpa) | 0.1-0.2 |
| Max Water Consumption(L/h) | 4 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1350*670*1800 |
| Weight(kg) | 552 |
| Ventilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
