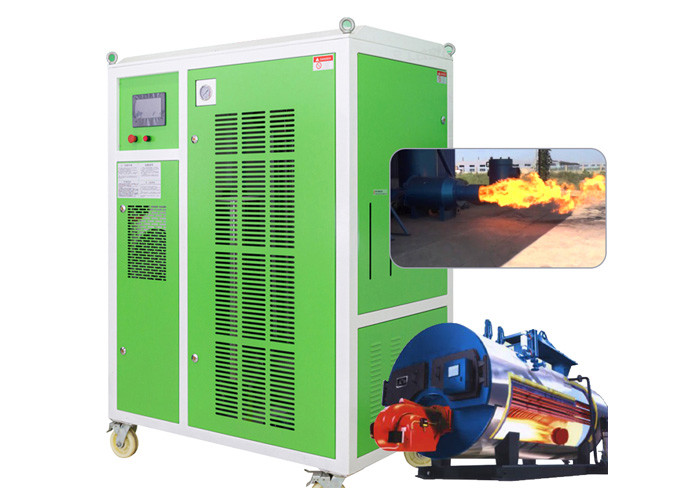

Oxyhydrogen generator is an energy saving gas generation equipment that uses electrolytic water technology to extract hydrogen and oxygen gas from water. Hydrogen gas work as fuel and oxygen gas as combustion support, which can replace acetylene, nature gas, LPG etc.It can burst with other fuel together for heating.
About Structure of Hho Gas Generator

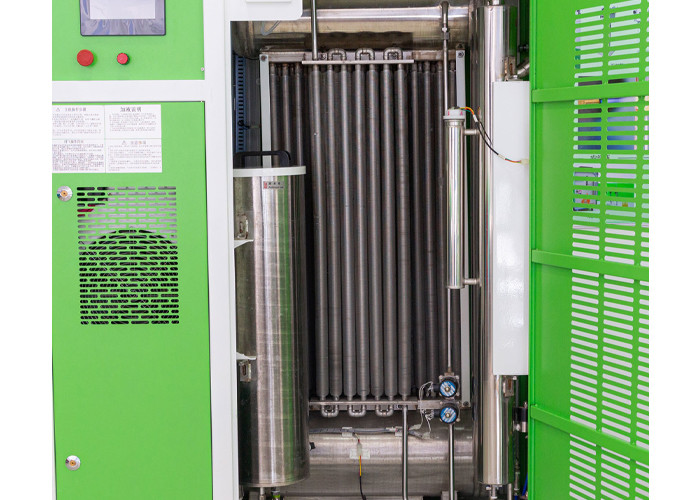

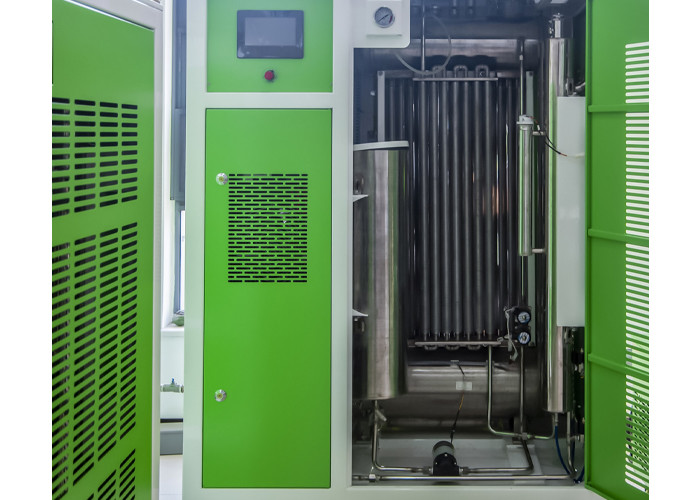

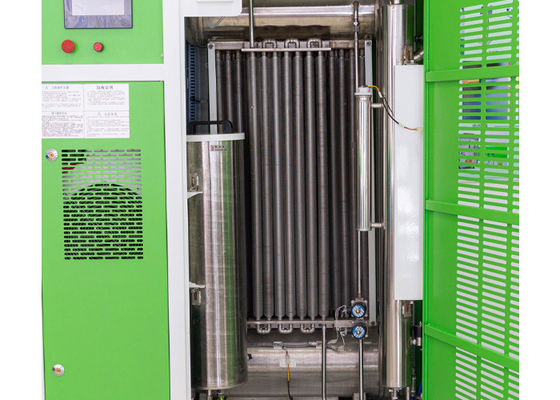

The interior structure of hho generator mainly includes electrolysis cell, cooling system, anti-backfire system, water storage tank, water filling system, power supply system, circuit control system.
We adopt the intergrated formed and wave-shape electrolysis cell which can dissipate the heat effectively and be not easy out of shape.
Technical Parameter
(The model number refers to the gas output of the oxyhydrogen generator, unit: L/h)
| Model | OH5500 |
| AC Voltage(V) | 380,three phases |
| Rated Power(KW) | 17 |
| Gas Output(L/h) | 0-5500 |
| Working Pressure(Mpa) | 0.1-0.2 |
| Max Water Consumption(L/h) | 2.8 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1200*670*1700 |
| Weight(kg) | 396 |
| Ventilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
