Product Description

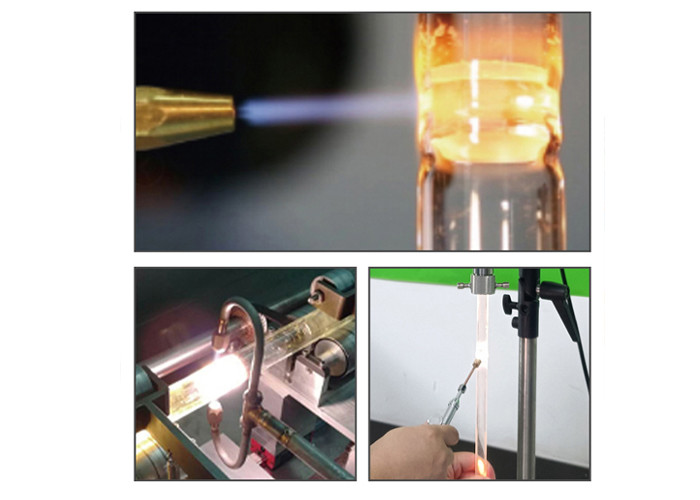

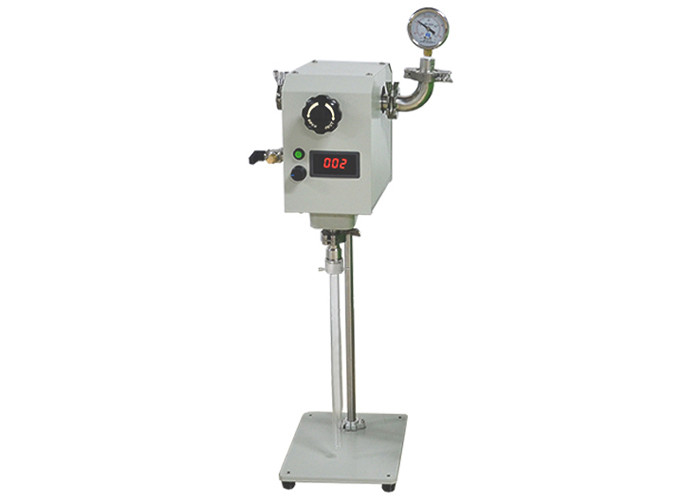

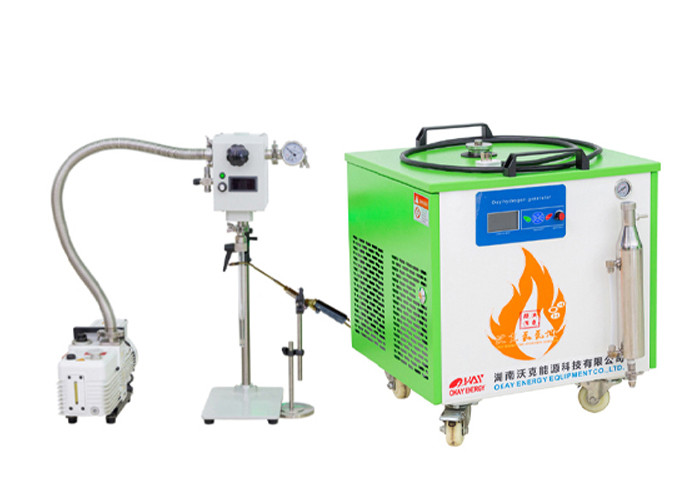

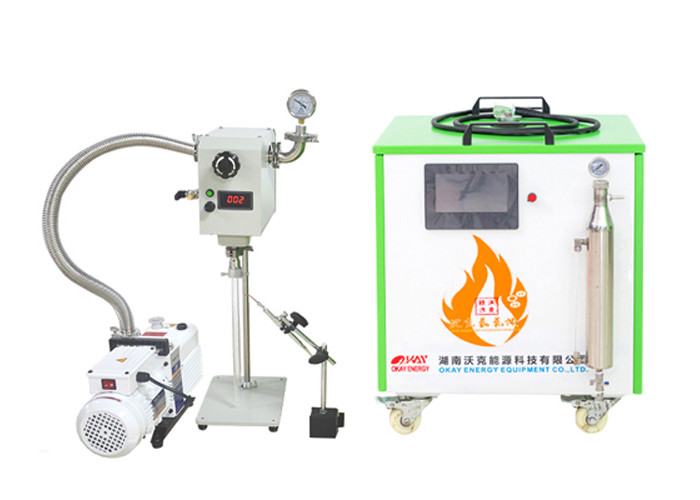

Okay Energy quartz tube vacuum sealing system is used for vacuum sealing samples under oxygen-free and water-free conditions by dynamic sealing technology. Quartz tube is vacuumed during auto-rotating and inert gas filling at the same time, which is easy to operate, with high vacuum and high sealing efficiency. The whole system includes oxyhydrogen generator, an oxyhydrogen anti-backfire device, a quartz vacuum sealing device, a vacuum pump(mechanical pump or molecular pump set)and glass clamps, etc.
The standardized and customized precision quartz glass joint/clamp can accurately match the quartz tube, to ensure the sealing ability of the quartz tube.
Technical Parameter
| Model | OK-M210 |
| Number of Workstation | one |
| Rotating Speed | 0-100r/min |
| Vacuum Leakage | 2*10-6pa m3/s |
| Vacuum Connection | KF25 |
| Air Ascape Valve | KF16 |
| Charging Port | 3mm-8mm,1/8in,1/4in,3/8in optional |
| Temperature Range | -20~200℃ |
| Sealing Method | pull sealing, plug sealing |
| Vacuum Leakage | 2*10¯6pa m3/S |
| Matched Device | oxyhydrogen generator, vacuum pump, vacuum guage |
Oxyhydrogen flame-sealing solutions and features
1. 14 models from minimum gas output 100 to maximum gas output 20000L/h
2. The gas production is adjustable with the features of water lack alarm, over-pressure and over-temperature protection, and no gas storage.
3. Different oxyhydrogen flame selection is based on the glass materials, glass tube diameter, and wall thickness.
4. A variety of flame torches and nozzles are available, showing different flames.
5. Large PLC touch screen is simple to operate.
6. Electronic flame arrestor, pressure regulator, electronic ignitor, and smart flame regulator are optional to meet the different flame requirements.
How to choose a suitable oxyhydrogen flame quartz vacuum sealing system? We need to know some basic questions as follows:
