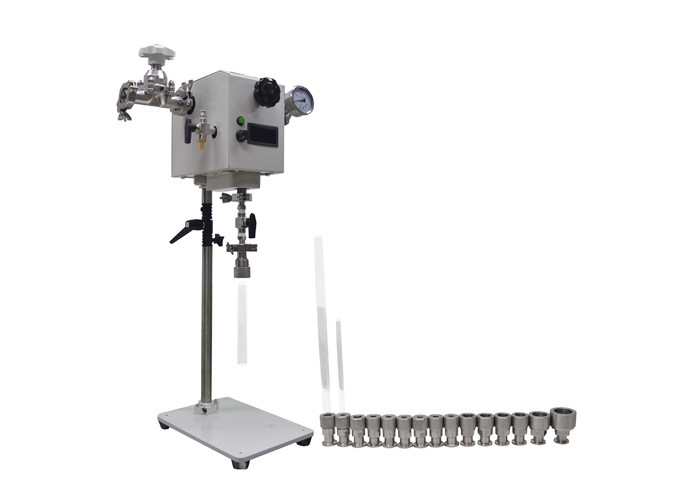

About Rotary Quartz Tube Vacuum Sealing Machine
1. With digital display to adjust the rotation speed, suitable for quartz tube pull sealing method and quartz plug sealing method.
2. Simple operation, compact structure, precise design, small size, economical, and optimal vacuum.
3. Built-in powder anti-reflux device prevents the material from being pumped away by the vacuum pump, protecting the vacuum pump.
Technical Parameter
| Model | OK-M210 |
| Number of Workstation | one |
| Rotating Speed | 0-100r/min |
| Vacuum Leakage | 2*10-6pa m3/s |
| Vacuum Connection | KF25 |
| Air Ascape Valve | KF16 |
| Charging Port | 3mm-8mm,1/8in,1/4in,3/8in optional |
| Temperature Range | -20~200℃ |
| Sealing Method | pull sealing, plug sealing |
| Vacuum Leakage | 2*10¯6pa m3/S |
| Matched Device | oxyhydrogen generator, vacuum pump, vacuum guage |

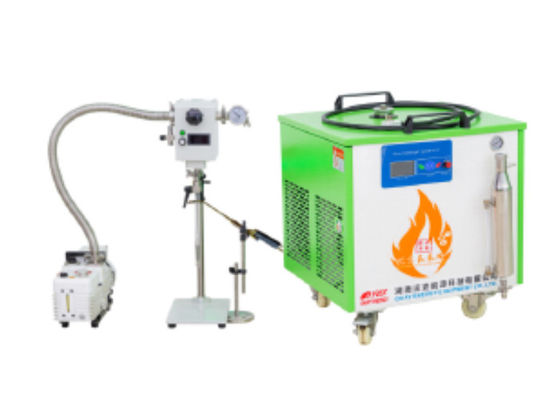

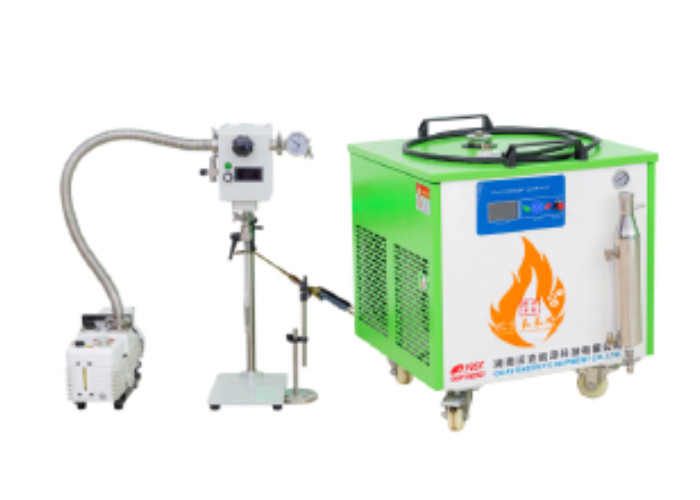

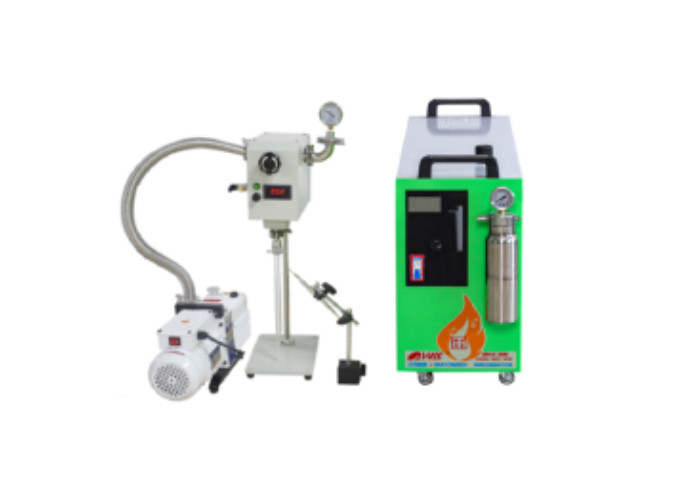

Oxyhydrogen flame-sealing solutions and features
1. 14 models from minimum gas output 100 to maximum gas output 20000L/h
2. The gas production is adjustable with the features of water lack alarm, over-pressure and over-temperature protection, and no gas storage.
3. Different oxyhydrogen flame selection is based on the glass materials, glass tube diameter, and wall thickness.
4. A variety of flame torches and nozzles are available, showing different flames.
5. Large PLC touch screen is simple to operate.
6. Electronic flame arrestor, pressure regulator, electronic ignitor, and smart flame regulator are optional to meet the different flame requirements.
How to choose a suitable oxyhydrogen flame quartz vacuum sealing system? We need to know some basic questions as follows:
