Product Description

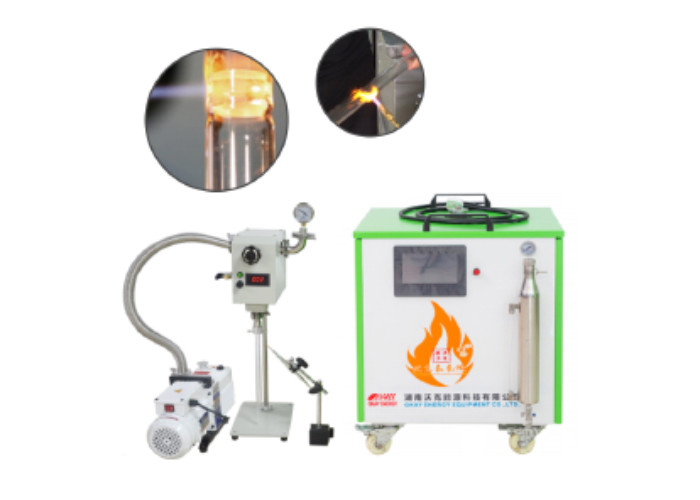

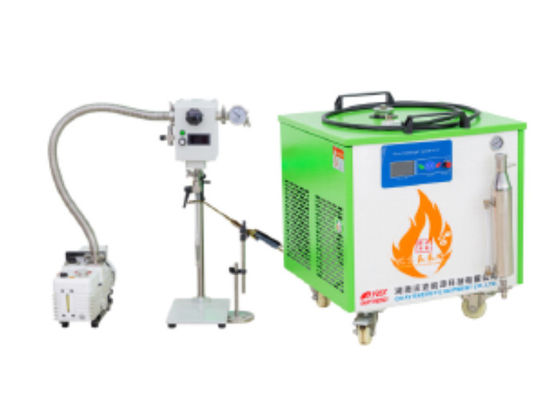

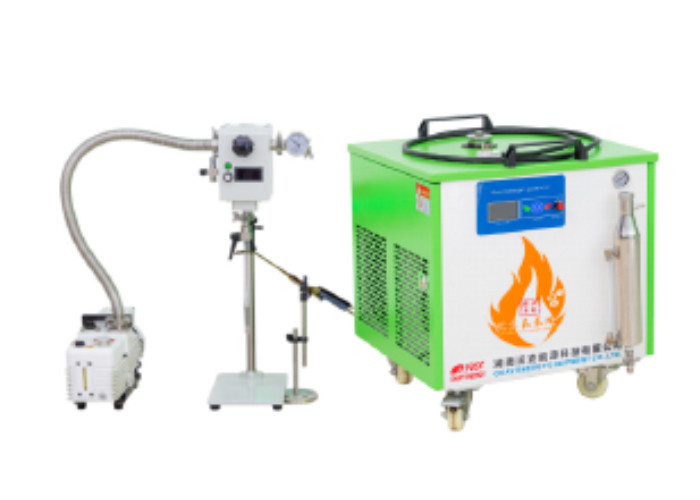

Okay Energy quartz tube vacuum sealing system is used for vacuum sealing samples under oxygen-free and water-free conditions by dynamic sealing technology. The whole system includes oxyhydrogen generator, oxyhydrogen anti-backfire device,quartz vacuum sealing device, vacuum pump(mechanical pump or molecular pump set), glass clamps, etc. The standardized and customized precision quartz glass joint/clamp can accurately match the quartz tube, to ensure the sealing ability of the quartz tube.
Oxyhydrogen flame vacuum sealing machine for quartz glass tube shapes a safe, efficient,energy-saving, environmentally friendly melting and sealing process.
Technical Parameter
| Model | OK-M210 |
| Number of Workstation | one |
| Rotating Speed | 0-100r/min |
| Vacuum Leakage | 2*10-6pa m3/s |
| Vacuum Connection | KF25 |
| Air Ascape Valve | KF16 |
| Charging Port | 3mm-8mm,1/8in,1/4in,3/8in optional |
| Temperature Range | -20~200℃ |
| Sealing Method | pull sealing, plug sealing |
| Vacuum Leakage | 2*10¯6pa m3/S |
| Matched Device | oxyhydrogen generator, vacuum pump, vacuum guage |
Oxyhydrogen Flame Sealing Machine Features:
1. Hydrogen and oxygen gas are electrolyzed from water, and the gas is clean and pollution-free.
2. On-site gas production, no storage.
3. Hydrogen and oxygen are produced at 2:1, the best combustion state to ensure complete combustion.
4. Oxyhydrogen flame is concentrated and not diffused, which heats the workpiece accurately.
5. Gas pressure protection. When the pressure reaches 0.2Mpa, the machine will automatically stop gas production, And when it is lower than 0.08Mpa, it will automatically resume gas production.
6. The flame torch with a flame arrester, the pipeline is equipped with a flame arrester, and the machine is equipped with a wet backfire prevention system, pressure control, pressure relief system, and other safety protection devices.
7. The figure displays the running status. The fault alarm, fault solution, and navigation-type operation tips are displayed on the screen.
| Model | OH800 oxyhydrogen generator |
| AC Voltage | 220V |
| Rated Power(KW) | 3 |
| Gas Output(L/h) | 0-800L/h |
| Working Pressure | 0.1-0.2Mpa |
| Max Water Consumption(L/h) | 0.43 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 660*550*800 |
| Weight(kg) | 70 |
| Ventilation Space Requirement(mm) | 200 |
Oxyhydrogen flame-sealing solutions and features
1. 14 models from minimum gas output 100 to maximum gas output 20000L/h
2. The gas production is adjustable with the features of water lack alarm, over-pressure and over-temperature protection, and no gas storage.
3. Different oxyhydrogen flame selection is based on the glass materials, tube diameter, and wall thickness.
4. A variety of flame torches and nozzles are available, showing different flames.
5. Large PLC touch screen is simple to operate.
6. Electronic flame arrestor, pressure regulator, electronic ignitor, and smart flame regulator are optional to meet the different flame requirements.
How to choose a suitable oxyhydrogen flame quartz vacuum sealing system? We need to know some basic questions as follows:
