Product Description
The electronic flame arrester OKFA-2 is mainly composed of induction sensor,fire-retardant device and control valve. At the moment of oxyhydrogen gas tempering,the sensor collects the anti-backfire signal and feeds it back to the control board. The control valve cuts off the gas source in 0.02 seconds and the fire-retardant device realizes fire extinguishing. After flame arresting,the oxyhydrogen generator will continue to supply gas within the set time. The components will not be damaged after tempering. It should be replaced every six months or a year. OKFA-2 is generally matched with OH800 or OH1000 oxyhydrogen generator,and added between hho machine and flame torch.
Technical Parameter
| Model | OKFA-2 |
| Working Medium | oxy-hydrogen gas,hydrogen gas |
| AC Voltage | 220/110V |
| Rated Power | 60W |
|
Fire Retardant Mode |
electronic fire retardant |
|
Dimension(L*W*H-mm) |
202*135*135 |
|
Gross Weight |
2kg |
How does it work?

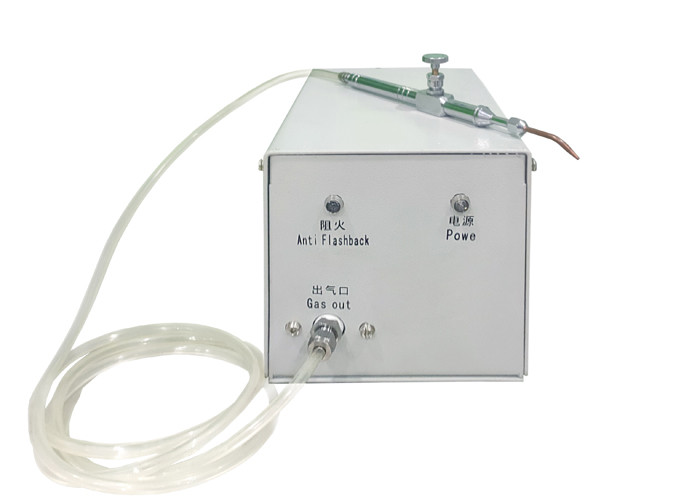

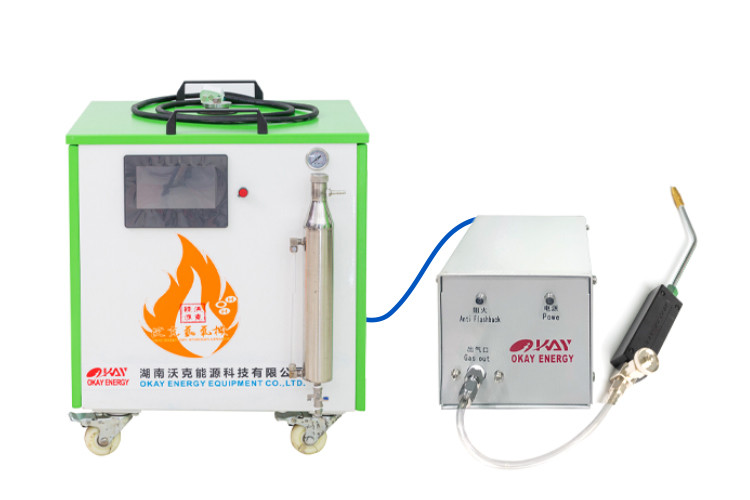

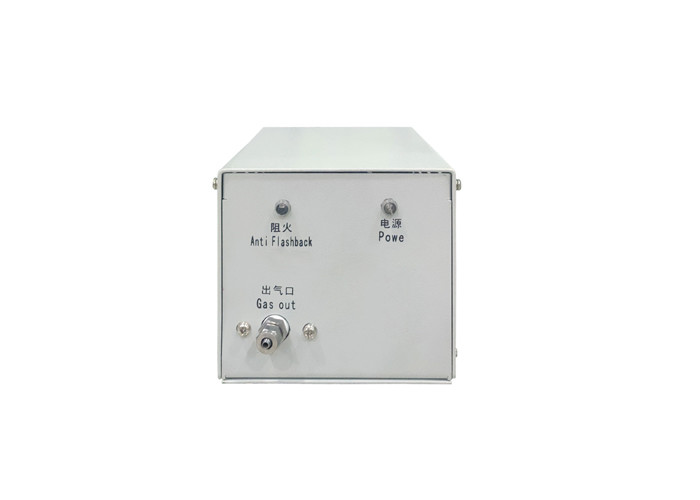

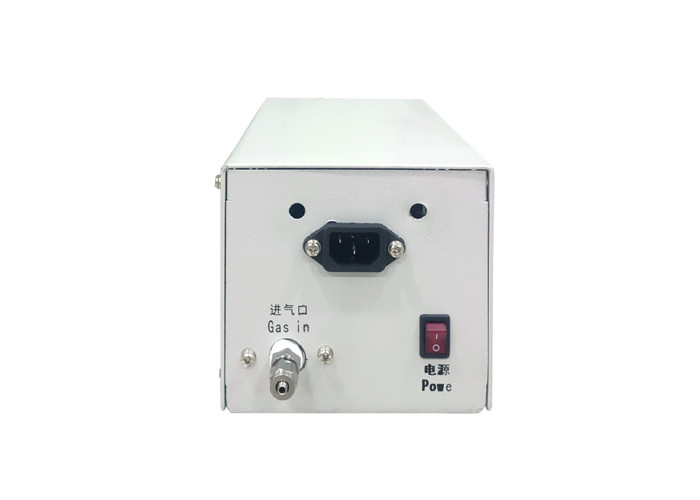

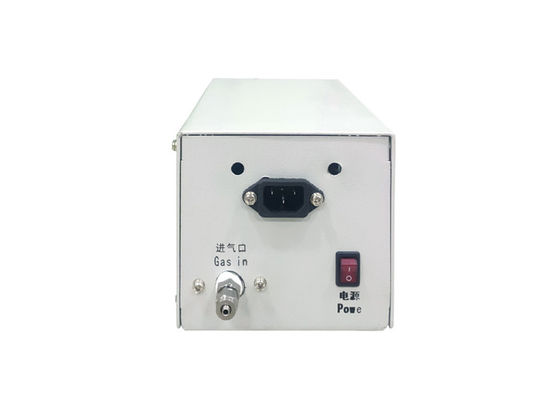

The hho machine’s gas pipe connects with the “gas in” of electronic flashback arrestor, and the hho gas flow out of ” gas out” connected with oxyhydrogen torch. When oxyhydrogen generator works well,the electronic flashback arrestor shows the red light.Once back-fire accurs, it automatically turn off the valve and shows the green light.
