Product Description

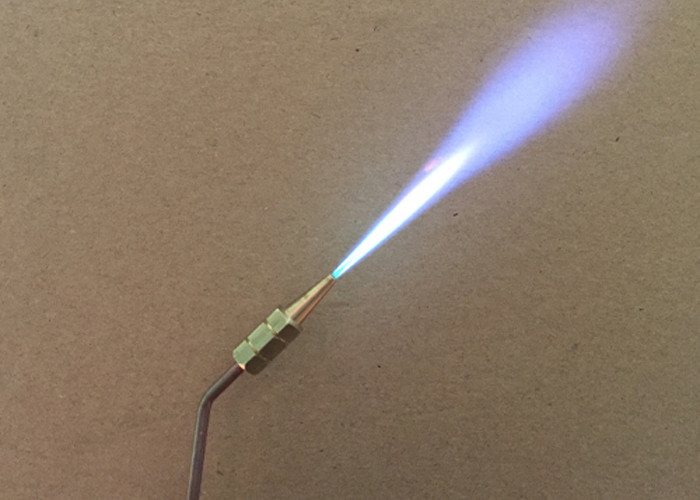

The oxyhydrogen flame torch is a necessary standard accessory, which is widely used for jewelry welding, flame ampoule sealing, quartz glass tube sealing, copper welding, brazing and etc.
How to use oxyhydrogen flame torch?
1. Connect the gas outlet to the flame torch by gas pipe.
2. Install the flame nozzle by pliers.
Firstly grip the flame nozzle by pliers. Secondly,squeeze the flame nozzle to the torch ,then the nozzle is install on the torch tightly.
3. When the output pressure of gas is high than 0.05Mpa,open the switch of the flame torch, ignition with a lighter.
4. Put out the fire by any one of the two ways: close the valve quickly or blow out by compressed air.

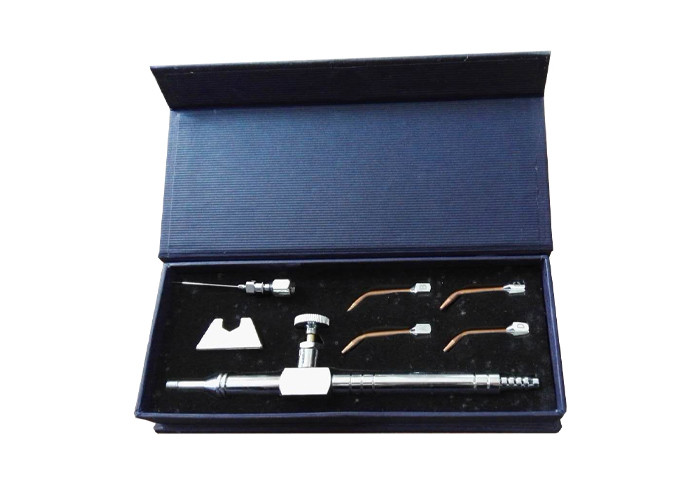

The standard torch box of oxyhydrogen generator OH200-OH600 includes a torch, four copper nozzles A, B, C, and D(0.3mm,0.4mm,0.5mm,0.6mm), a needle rotary joint, a needle(22G).

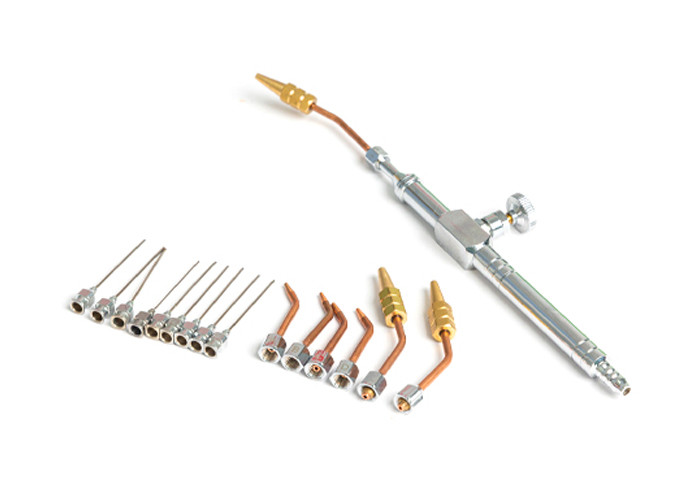

The oxyhydrogen flame torch has the structure of a gas inlet, built-in flame arrestor, valve, and nozzle joint.
