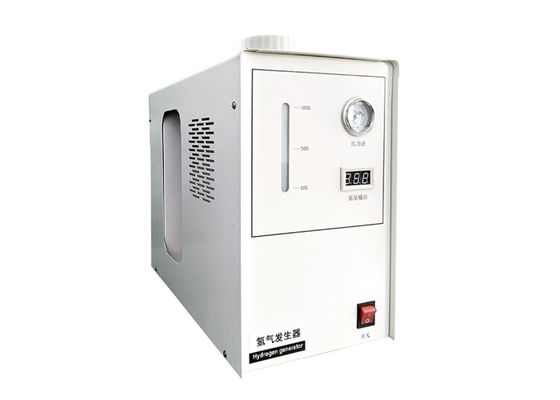

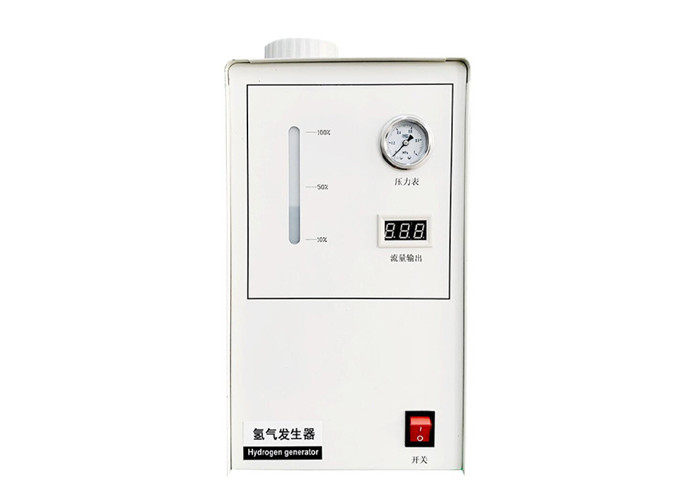

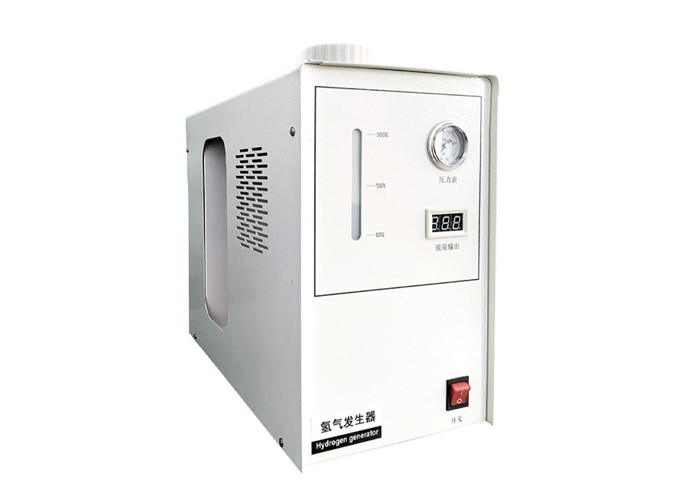

Product Description
The working principle is the traditional diaphragm alkaline electrolysis method. The conductive medium in the electrolytic cell is potassium hydroxide aqueous solution, the separator of the two pole chamber is the diaphragm for aerospace electrolytic equipment, and the grid electrode with corrosion resistance and good mass transfer integrated with the end plate constitutes the electrolytic cell.
Technical Parameter
| Model | AL300 |
| Output Flow(ml/min) | 300 |
| Output Pressure(Mpa) | 0.3 |
|
Fluctuation Rate of Output Pressure(%) |
<0.2 |
|
H2 purity |
99.999% |
| AC Volotage(V) |
110/220±10%50/60Hz |
| Power(W) | <150 |
|
Dimension(L*W*H-mm) |
440*210*365 |
|
Gross Weight(kg) |
15 |
Product Feature
