Product Description

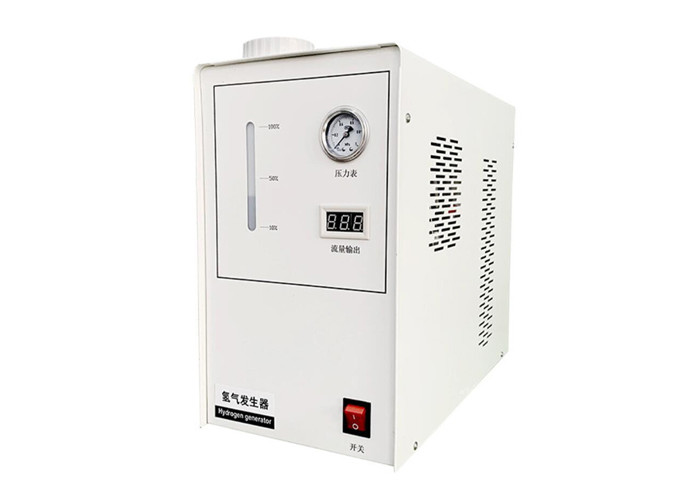

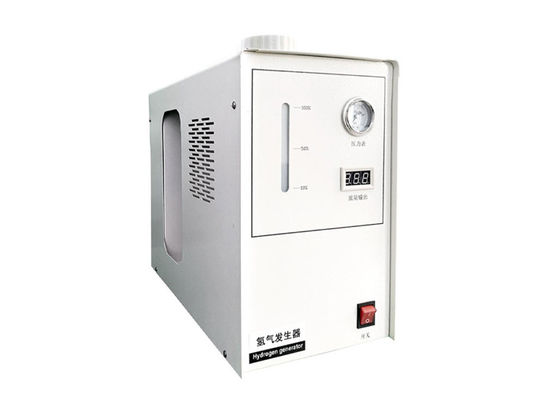

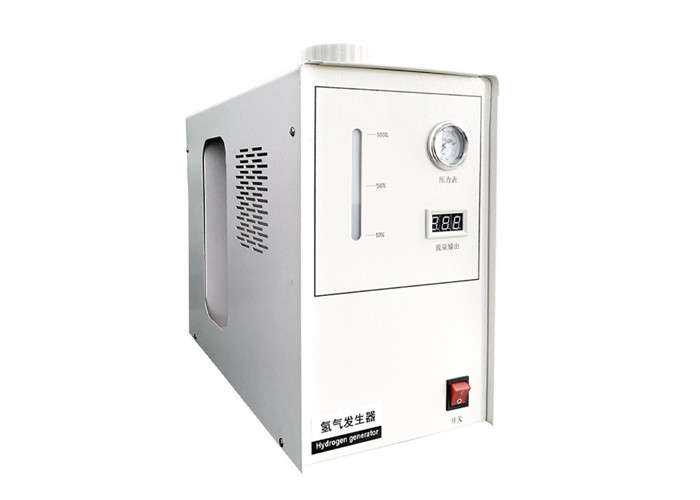

The alkaline hydrogen generator is composed of electrolysis cell, switching power supply, pressure control, flow control, drying and purification, flow display and other systems. Hydrogen is obtained by electrolyzing potassium hydroxide aqueous solution.It can supply the gas chromatograph with stable hydrogen gas.
Technical Parameter
| Model | AL300 |
| Output Flow(ml/min) | 300 |
| Output Pressure(Mpa) | 0.3 |
|
Fluctuation Rate of Output Pressure(%) |
<0.2 |
|
H2 purity |
99.999% |
| AC Volotage(V) |
110/220±10%50/60Hz |
| Power(W) | <150 |
|
Dimension(L*W*H-mm) |
440*210*365 |
|
Gross Weight(kg) |
15 |
Product Feature
