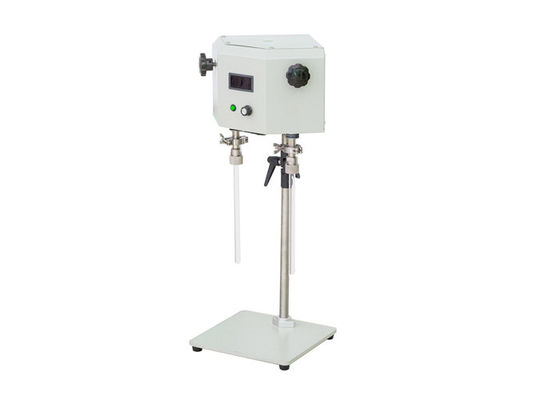

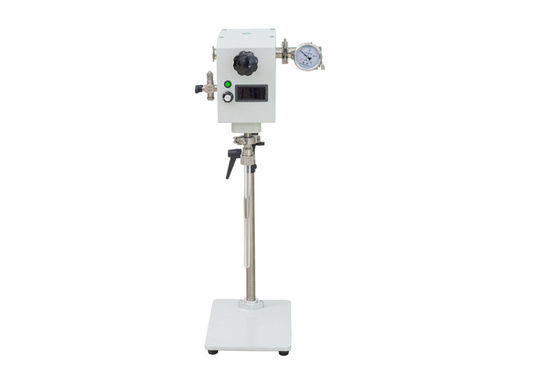

About Oxyhydrogen Generator and Quartz Ampoule Vacuum Sealing Machine
Oxyhydrogen flame vacuum sealing machine for quartz glass tube shapes a safe, efficient,energy-saving, environmentally friendly melting and sealing process.
Product Features
1. Gas production is adjustable,with water lack alarm,over-pressure and over-temperature protection, and without gas storage features.
2. A variety of flame torches and nozzles are available, showing different flame states.
3. Large PLC touch screen control system, simple operation.
4. Electronic flame arrestor, pressure regulator, electronic igniter, and smart flame regulator are optional to meet different flame requirements.
Technical Parameter
| Model | OK-M210 |
| Number of Workstation | one |
| Rotating Speed | 0-100r/min |
| Vacuum Leakage | 2*10-6pa m3/s |
| Vacuum Connection | KF25 |
| Air Ascape Valve | KF16 |
| Charging Port | 3mm-8mm,1/8in,1/4in,3/8in optional |
| Temperature Range | -20~200℃ |

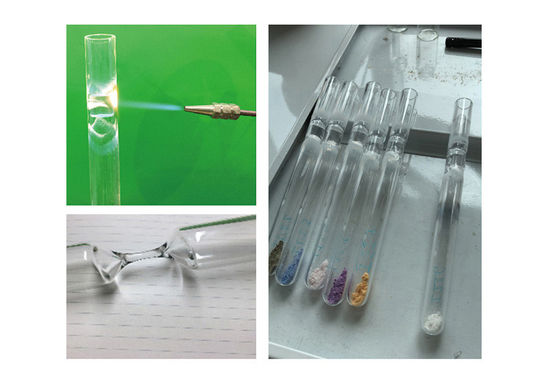

| Sealing Method | pull sealing, plug sealing |
| Vacuum Leakage | 2*10¯6pa m3/S |

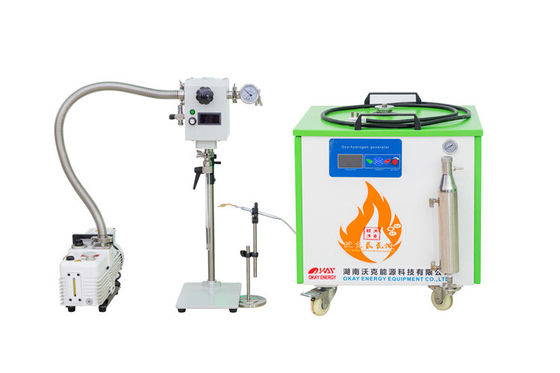

| Matched Device | oxyhydrogen generator, vacuum pump, vacuum guage |
Oxyhydrogen Flame Sealing Machine Features:
1. Hydrogen and oxygen gas are electrolyzed from water, and the gas is clean and pollution-free.
2. On-site gas production, no storage.
3. Hydrogen and oxygen are produced at 2:1, the best combustion state to ensure complete combustion.
4. Oxyhydrogen flame is concentrated and not diffused, which heats the workpiece accurately.
5. Gas pressure protection. When the pressure reaches 0.2Mpa, the machine will automatically stop gas production, And when it is lower than 0.08Mpa, it will automatically resume gas production.
6. The flame torch with a flame arrester, the pipeline is equipped with a flame arrester, and the machine is equipped with a wet backfire prevention system, pressure control, pressure relief system, and other safety protection devices.
7. The figure displays the running status. The fault alarm, fault solution, and navigation-type operation tips are displayed on the screen.
| Model | OH800 oxyhydrogen generator |
| AC Voltage | 220V |
| Rated Power(KW) | 3 |
| Gas Output(L/h) | 0-800L/h |
| Working Pressure | 0.1-0.2Mpa |
| Max Water Consumption(L/h) | 0.43 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 660*550*800 |
| Weight(kg) | 70 |
| Ventilation Space Requirement(mm) | 200 |
How to choose a suitable oxyhydrogen flame quartz vacuum sealing system? We need to know some basic questions as follows:
