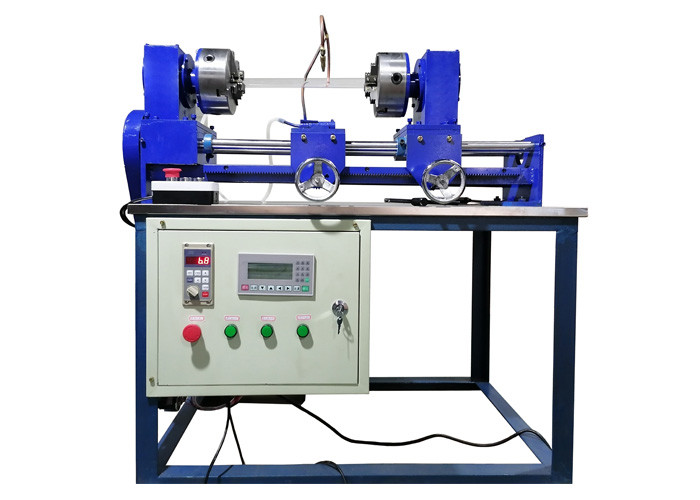

Introduction of Glass Lathe Machine's Structure
The head stock is fixed, and usually houses the main controls (on/off, rotational speed). The tail stock moves towards or away from the head stock by way of the larger wheel pictured. This movement is used to gather or take away glass during the fabrication process. The tail stock moves on rails (or ways) that maintain extremely accurate alignment with the head stock.
Technical Parameter
| Model | OK-M40 |
| Voltage | 220V |
| Product Name | oxyhydrogen flame glass blowing lathe machine |
| Dimension(L*W*H-mm) | 1125*445*930 |
| Optional Quartz Diameter |
>50Ømm |
| Glass Type | large-sized borate glass and quartz glass tube |
| Features | simple and convenint operation, high efficiency, safety, customization solution |
| Applied For | laboratory, research institute, university |
| Optical Sealing Device | oxyhydrogen generator,electronic flashback arrestor |

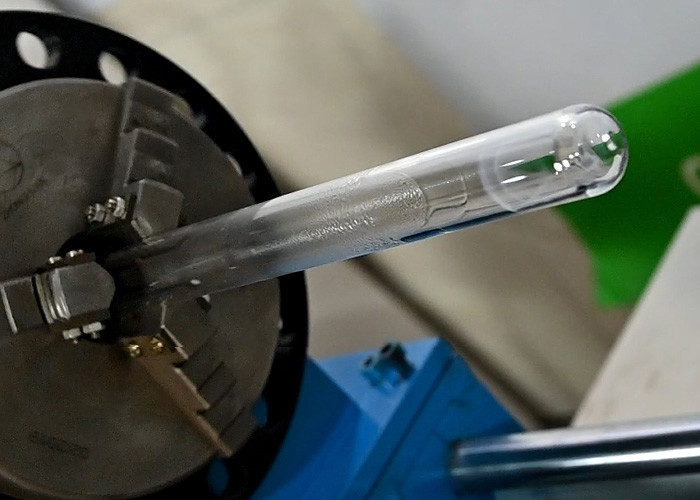

It is to fix large-sized borate glass or quartz tubes for evenly heating. It is usually equipped with industrial oxyhydrogen generators OH2000, OH3000, OH5500, etc.

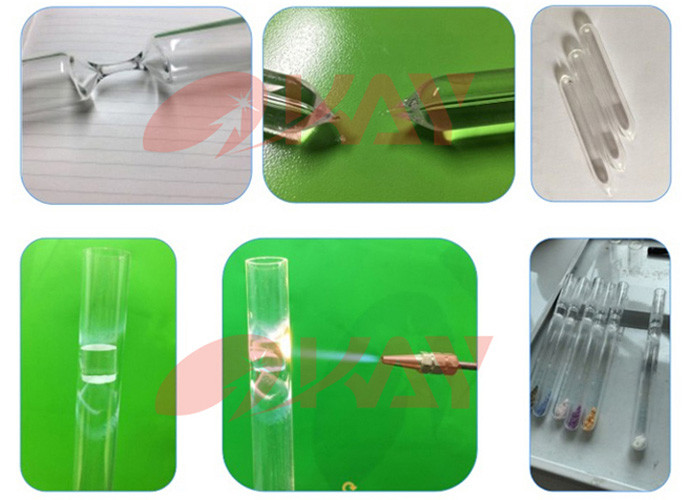

It can be used for 1. Fast sealing of laboratory high-purity material 2. Tube sealing of batch factory material 3. Quartz tube sealing 4. Borate tube sealing 5. Fast sealing of laboratory other material 6. Fast professional preparation of laboratory material.
