Product Description
Horizontal glass blowing lathe or bench-type glass lathe, which is commonly used in the precision glass industry for laboratory sealing, thermometer sealing, electrode sealing, glass-to-metal seals, graded seals and other blowing and forming operations. Glassblowing lathes will be found in every scientific glassblowing shop or laboratory.
Technical Parameter
| Model | OK-M30 |
| Voltage | 220V |
| Product Name | oxyhydrogen flame glass vacuum sealing blowing lathe machine |
| Dimension(L*W*H-mm) | 1125*445*930 |
| Optional Quartz Diameter | 8-150Ø |
| Glass Type | large-sized borate glass and quartz glass tube |
| Features | simple and convenient operation, high efficiency, safety,customization solution |
| Applied For | laboratory,research institute, university |
| Optical Sealing Device | oxyhydrogen generator,vacuum pump,vacuum gauge |
How to do scientific grade quartz vacuum sealing for the glass tube?

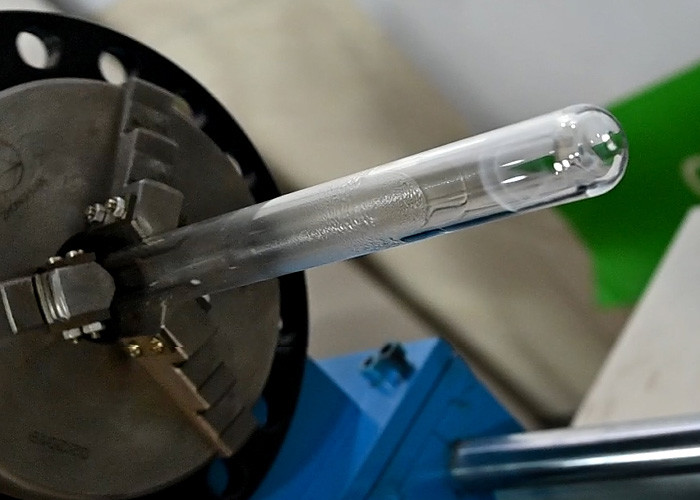

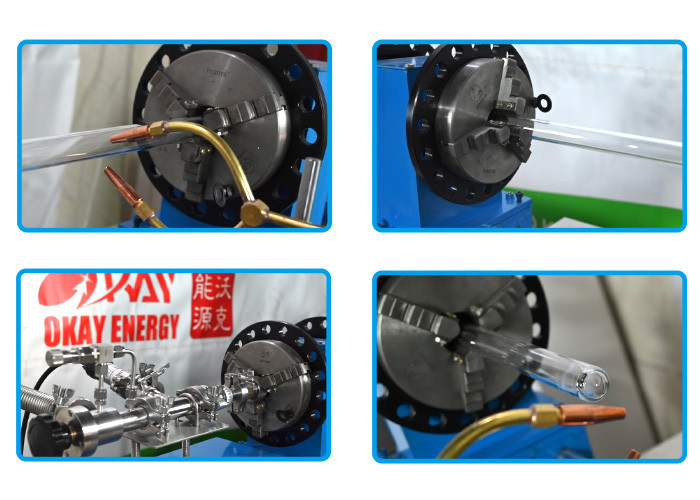

The sample is put into the quartz tube and sealed without oxygen and water. Dynamic sealing technology is adopted to make the quartz tube rotate automatically and vacuum at the same time.

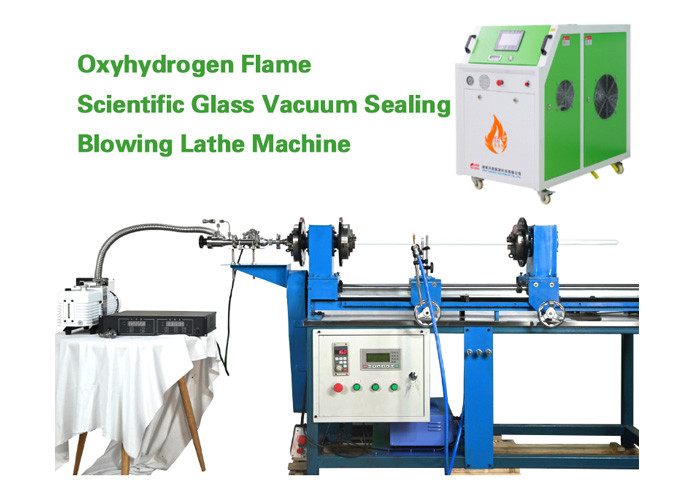

The vacuum sealing system includes a mechanical pump or molecular pump, vacuum gauge, oxyhydrogen generator, and glass blowing lathe. It can be designed for simple, safety, precise, and high efficient sealing operation under the required vacuum degree laboratory environment. According to the vacuum degree requirements, you can choose a mechanical pump or molecular pump set to vacuum the quartz tube.
