Oxyhydrogen Welding Features
1. The oxy-hydrogen flame temperature is high up to 2800 degrees, it can heat the welding spot to the melting point fast in about 1 second to finish welding.
2. The oxyhydrogen flame is concentrated, and it can achieve welding of precise devices.
3. Oxy-hydrogen flame combustion doesn't form carbide, so there is no black spot, and avoid the second treatment of cleaning and polishing.
The small portable hho welding machine can be applied for the electronic industry of welding enameled wire, computer wire peeling, LED wafer, flame-treating circuit boards, thermocouples, and platinum resistor leading wires.
Technical Parameter
| Model | OH200 |
| AC Voltage(V) | 220/110 |
| Rated Power(KW) | 0.8 |
| Gas Output(L/h) | 0-200 |
| Working Pressure | 0.1-0.14Mpa |
| Max. Water Consumption(L/h) | 0.11 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 450*246*470 |
| Weight(kg) | 17 |
| Vertilation Space Requirement(mm) | 200 |

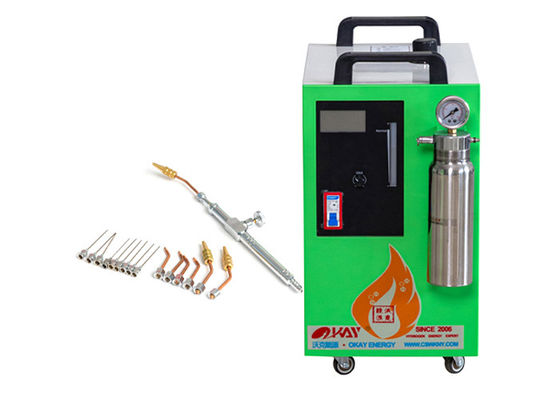

Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
