Product Description

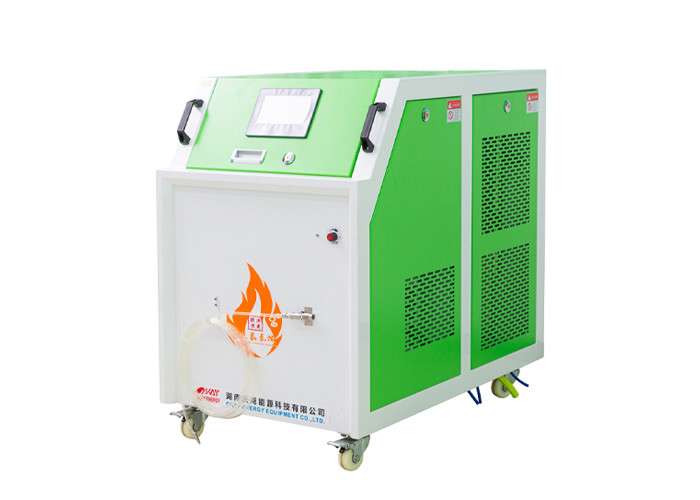

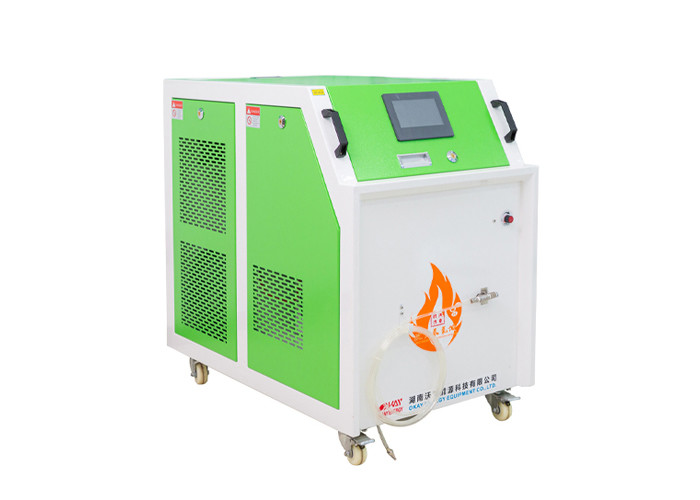

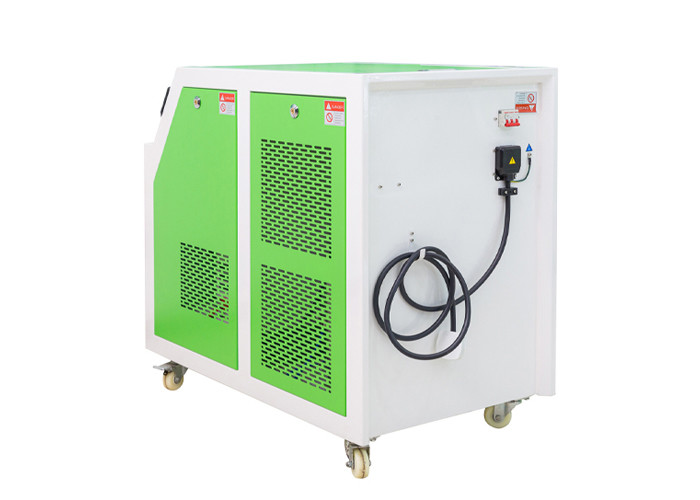

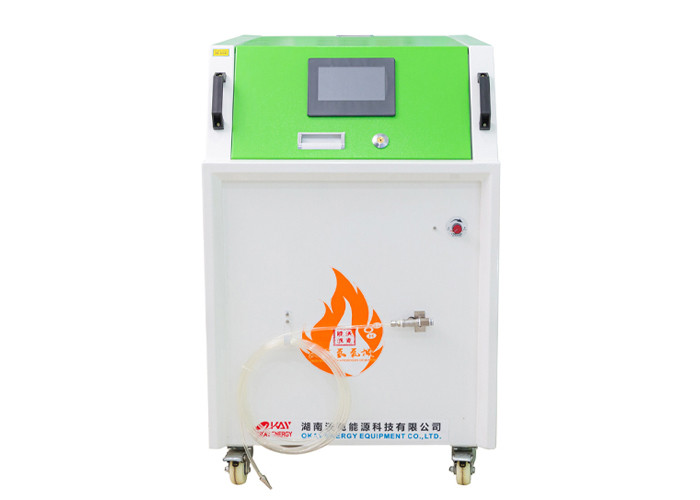

Oxyhydrogen generator for welding is safe and convenient for operation.
Turn on the machine to produce hho gas immediately and shut it down to stop producing automatically when the gas pressure is too high. The oxy-hydrogen flame temperature is up to 2800 Celsius degree. It can heat the welding spot to melting point fast in about 1 second to finish welding. Compared with other gas welding way E.g. oxyacetylene welding, the oxyhydrogen welding machine will save cost over 40%.
Technical Parameter
(The model number refers to the gas output of the oxyhydrogen generator, unit: L/h)
| Model | OH1500 |
| AC Voltage(V) | 380 |
| Rated Power(KW) | 5.2 |
| Gas Output(L/h) | 0-1500 |
| Working Pressure | 0.1-0.2Mpa |
| Max. Water Consumption(L/h) | 0.9 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1070*670*1000 |
| Weight(kg) | 200 |
| Vertilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
