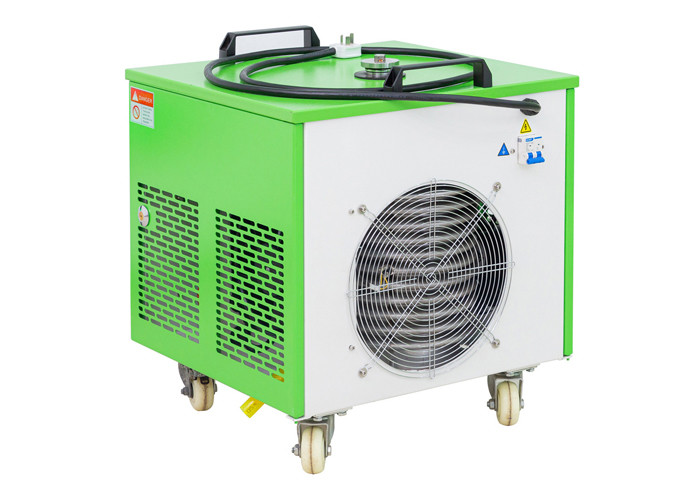

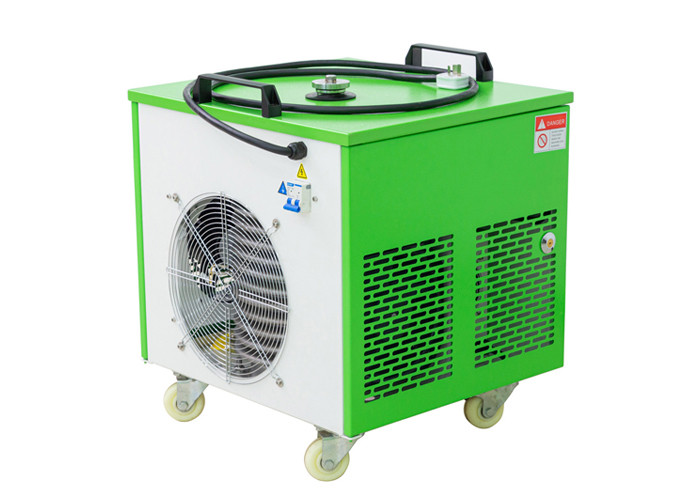

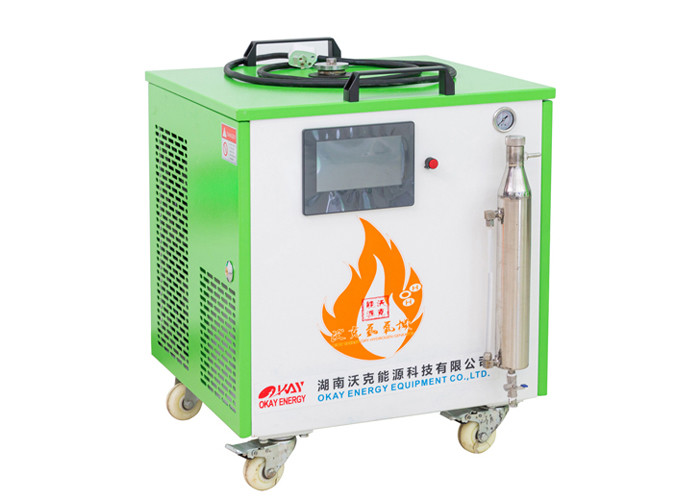

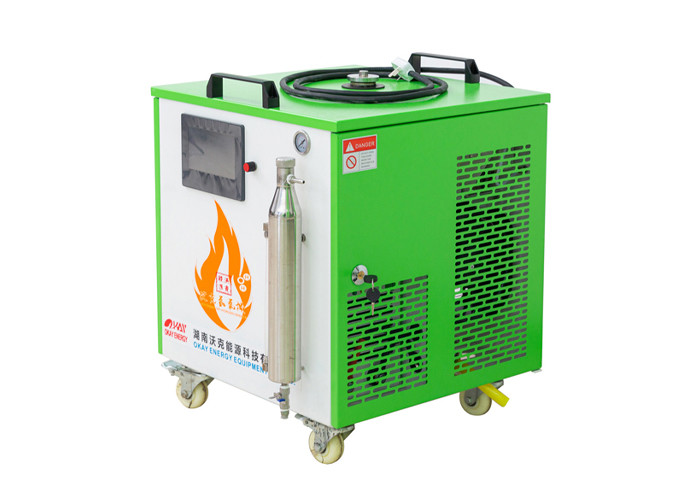

OH1000 unique oxyhydrogen technology
Graphic Display Control System,Easy To Operate
It’s very easy to operate the hho generator, if there is abnormal situation, it will shows on the screen of work tip to advise you the next step and how to operate it.
There are message box on the screen to reminder the operator, it’s very convenient for users to find the possible problems and fault of the machine, which assure the safe operation. At the same time, it shows the working conditions of spare parts inside the machine, which will be helpful for later maintenance.
Technical Parameter
| Model | OH1000 |
| AC Voltage | 220V |
| Rated Power(KW) | 3.5 |
| Gas Output(L/h) | 0-1000L/h |
| Working Pressure | 0.1-0.2Mpa |
| Max Water Consumption(L/h) | 0.53 |
| Water Feed | manual/automatic |
| Dimension(L*W*H-mm) | 630*590*720 |
| Weight(kg) | 80 |
| Vertilation Space Requirement(mm) | 200 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
