Oxyhydrogen flame welding compared with traditional flame welding:
1. It is produced on demand without storage. Compared with gas cylinders, it is safe and convenient.
2. The raw material is simple. It only needs water and electricity. It can be produced and used immediately after the machine power on. It is economical and practical. It has good mobility and small size. It can be carried around and also suitable for field work.
3. Concentrated oxy-hydrogen flame is suitable for precision flame processing.
4. Oxyhydrogen gas are odorless and non-toxic, and the combustion product is only water, which does not pollute the environment.
5. The oxyhydrogen flame is a carbon-free flame, and the work piece is welded firmly without carbon embrittlement.
Oxyhydrogen Advantage
1. Polishing fast and smooth. The flame temperature is over 2800℃. The concentrated flame makes polishing work more fast and smooth.
2. Safety and convenience. The small machine is convenient for carrying out outdoor work.
3. Economy. The working medium is pure water and electricity. The KOH electrolyte liquid is only added in the first using time.
4. Environment friendly. HHO gas is colorless, and odorless, with no CO, no CO2, and no other poisonous and harmful material. There is no carbon emission when combustion.
Technical Parameter
| Model | SOH100 |
| AC Voltage(V) | 220/110 |
| Rated Power(KW) | 0.4 |
| Gas Output(L/h) | 0-100 |
| Working Pressure | 0.1-0.14Mpa |
| Max. Water Consumption(L/h) | 0.06 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 520*300*540 |
| Weight(kg) | 15 |
| Vertilation Space Requirement(mm) | 200 |

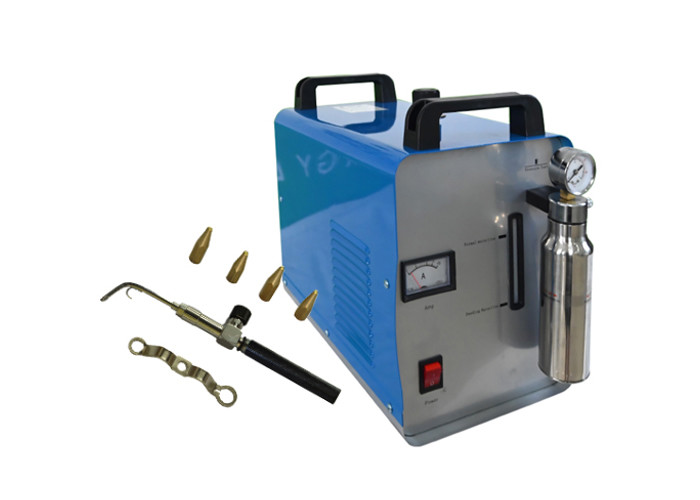

Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
