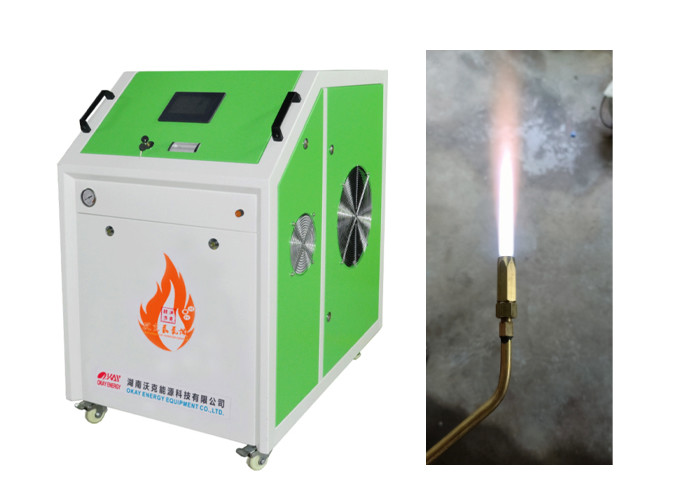

About Okay Energy Oxyhydrogen Brazing Machine
1. Safe and reliable. It can adjust the gas production in real-time, water shortage alarm, shut down due to overpressure and overtemperature, and no gas storage.
2. Model selection. The model is selected according to the size of the workpiece.
3. A variety of flame torches and nozzles can be selected, showing different flame statuses.
3. Complete accessories. The electronic flame arrestor, pressure regulator, and electronic igniter are selected to meet different flame requirements.

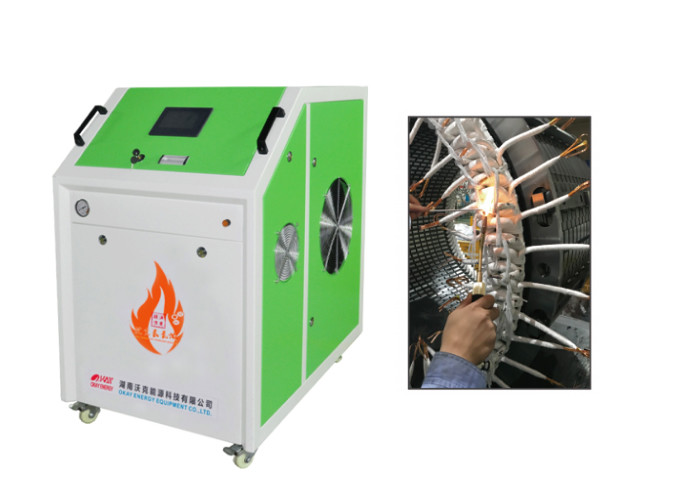

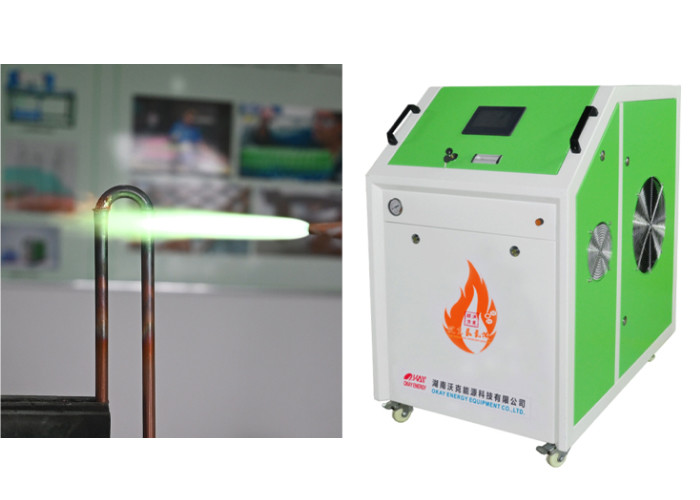

Oxyhydrogen Brazing Flat Copper Bar
The oxyhydrogen welding torch produces a high temperature, high energy, and concentrated oxyhydrogen flame, which can weld the joint of copper lines. The solder joints are strong and beautiful, with no virtual soldering, no black smoke, and exhaust gas.
Technical Parameter
| Model | OH3000 |
| AC Voltage(V) | 380 |
| Rated Power(KW) | 9 |
| Gas Output(L/h) | 0-3000 |
| Working Pressure | 0.1-0.2Mpa |
| Max. Water Consumption(L/h) | 1.8 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1070*670*1500 |
| Weight(kg) | 330 |
| Vertilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
