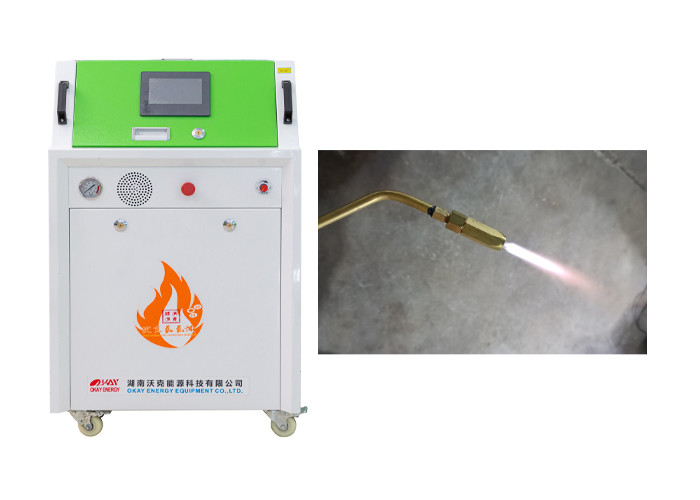

About Oxyhydrogen Welding Machine
Oxyhydrogen welding machine uses potassium hydroxide(KOH) as the electrolyte and adopts the principle of electrolyzing pure water into hydrogen as fuel and oxygen as a catalyst. Hydrogen is a clean and carbon-free energy. The combustion substance of oxyhydrogen flame is only water vapor. It is green eco-friendly on-site gas generation equipment, no gas cylinder is needed. Oxyhydrogen gas is produced on demand at any time and anywhere. Therefore,high frequently transported, and replaced oxyfuel gas cylinders is not required.

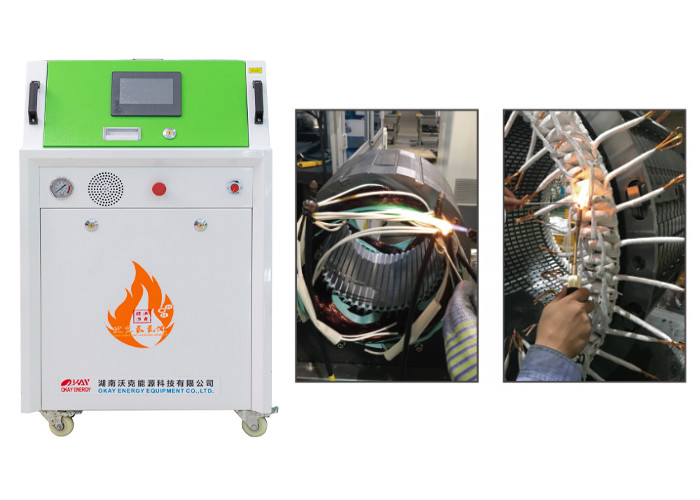

Oxyhydrogen Welding Enameled Copper Wire Compared With Soft Soldering, Butt Welding, Oxyfuel Gas Welding
The oxyhydrogen welding torch produces a high temperature, high energy, and concentrated oxyhydrogen flame, which can weld the joint of several enamel copper wires. The solder joints are strong and beautiful, with no virtual soldering, no black smoke, and exhaust gas.
The traditional welding methods are featured by low-cost investment, but there are some disadvantages to welding electric motor magnet wire.
|
Advantages /Disadvantages |
Oxyhydrogen Welding | Soft Soldering | Butt Welding | Oxyfuel Welding |
| Enamel Stripping Processing |
No enamel stripping machine |
Soldering with mechanical stripping |
Welding with mechanical stripping | Welding with mechanical stripping |
| Welding Speed | Fast, high-precision welding | Slow, it is only suitable for small size copper wire | Fast, but it is harmful to the eye |
Fast, but the flame diverges.Easy to burn other enameled wires |
| Solder Joint | Strong joint | Bad conductivity | Poor welding connection | Strong joint |
| Welding Cost | Cost-effective. One-time investment, and long time usage | Lowest cost, but it is used for small size motor | Lower cost | Oxyfuel gas is relative expensive,floating and unstable costs. |
Technical Parameter
| Model | OH2000 |
| AC Voltage(V) | 380 |
| Rated Power(KW) | 9 |
| Gas Output(L/h) | 0-2000 |
| Working Pressure | 0.1-0.2Mpa |
| Max. Water Consumption(L/h) | 1.08 |
| Water Feed | auto |
| Dimension(L*W*H-mm) | 1070*670*1000 |
| Weight(kg) | 280 |
| Vertilation Space Requirement(mm) | 400 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
