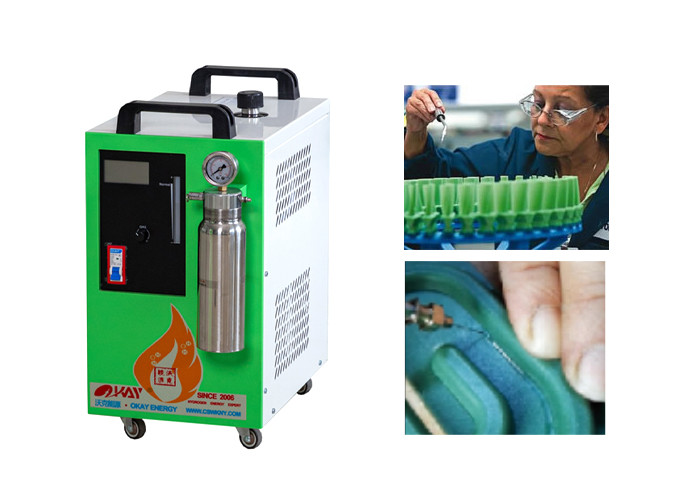

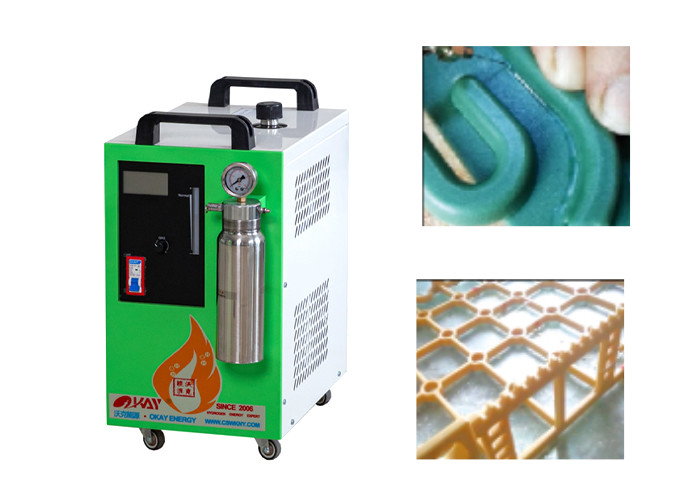

Oxyhydrogen generator for welding wax patterns
Precision oxyhydrogen flame: suitable for various precision welding.
Concentrated oxyhydrogen flame: welding speed is faster than other gases.
Carbon-free oxyhydrogen flame: It does not change the rigidity and flexibility of the workpiece.
Convenient operation: No gas cylinders, just consuming pure water and electricity.
Why do you use an oxyhydrogen welder machine for the wax patterns?
1. The machine can accurately control the gas pressure and flow.
2. Stable oxyhydrogen flame.
3. Temperature, diameter, and length of oxyhydrogen flame are adjustable.
4. Oxyhydrogen flame welding is smooth and uniform.
5. Oxyhydrogen flame welding is pollution-free and eco-friendly.
Technical Parameter
| Model | OH200 |
| AC Voltage(V) | 220/110 |
| Rated Power(KW) | 0.8 |
| Gas Output(L/h) | 0-200 |
| Working Pressure | 0.1-0.14Mpa |
| Max. Water Consumption(L/h) | 0.11 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 450*246*470 |
| Weight(kg) | 17 |
| Vertilation Space Requirement(mm) | 200 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
