Oxy-hydrogen Generator Principle
The oxyhydrogen generator is able to separate clean soft water(H2O) into hydrogen and oxygen gases, using a small amount of electricity through the water electrolysis process. These gases are then mixed and applied in the jewelry industry, such as jewelry repair and welding, and jewelry wax casting.
Oxyhydrogen Generator Features
1. The oxyhydrogen flame torch will form a small and clean flame which is ideal for precise welding requests. Jewelry work is welding fast, welding precisely, and with smooth welding spots.
2. The oxyhydrogen flame can be diffused and its temperature also can be reduced by adding some alcohol or petroleum to the filter tank.
Technical Parameter
| Model | SOH100 |
| AC Voltage(V) | 220/110 |
| Rated Power(KW) | 0.4 |
| Gas Output(L/h) | 0-100 |
| Working Pressure | 0.1-0.14Mpa |
| Max. Water Consumption(L/h) | 0.06 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 520*300*540 |
| Weight(kg) | 15 |
| Vertilation Space Requirement(mm) | 200 |

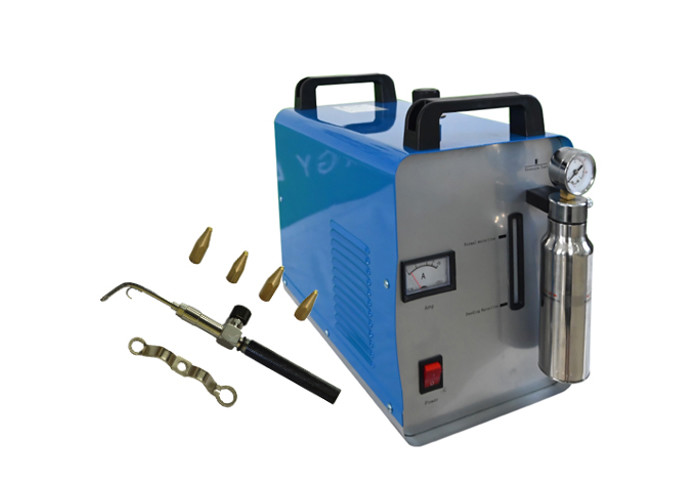

Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
