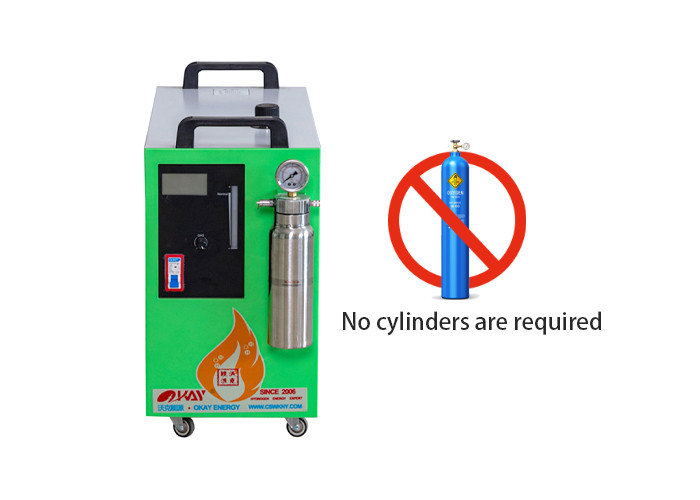

About Water Fuel Oxyhydrogen Generator
The machine generates oxygen and hydrogen gas after powering on and ignites to form the oxyhydrogen flame. The oxyhydrogen flame temperature is as high as 2800 degrees. The flame is concentrated. The machine produces gas on demand without storage, which can replace dangerous gas cylinders such as oxygen and acetylene.
The oxyhydrogen generator is a kind of flame gas welding machine, it is suitable for non-ferrous metal welding and brazing, such as gold, silver, copper, aluminum, and so on materials.
We can provide you with a one-to-one gas supply scheme used in the process of electric motor brazing, electric motor brazing, air compressor welding and etc.
Technical Parameter
| Model | OH400 |
| AC Voltage(V) | 220/110 |
| Rated Power(KW) | 1.4 |
| Gas Output(L/h) | 0-400 |
| Working Pressure | 0.1-0.14Mpa |
| Max. Water Consumption(L/h) | 0.23 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 695*246*470 |
| Weight(kg) | 26 |
| Vertilation Space Requirement(mm) | 200 |

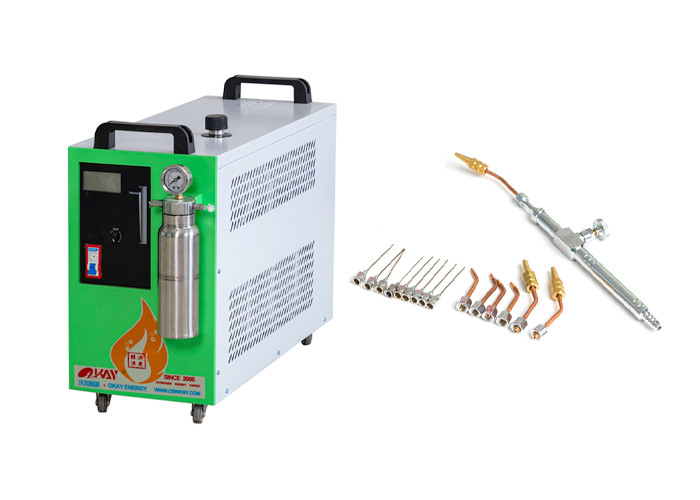

Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
How to Maintain Oxyhydrogen Generator?
Our machine needs to maintain in order to improve the service life and gas production efficiency. Firstly, we should clean the electrolytic cell.
After pouring out the electrolyte liquid from the water inlet, we clean the electrolytic cell until clean water flows out. The second is to replace
the new electrolyte. We need to make the new electrolyte. The making method is the same as when we received the new machine. The third is to clean the main machine, especially the cooling grid and cooling fan.
