About Oxyhydrogen Generator Welding Machine
Oxyhydrogen technology uses water as medium to electrolyze water into H2 and O2, fire them to form oxyhydrogen Flame. The temperature of oxyhydrogen flame is as high as 2800 degrees,so that it can weld very fast. The quality and speed of oxyhydrogen flame welding method is higher than liquid gas's.
Oxyhydrogen flame is ideal for jewelry and denture industry.

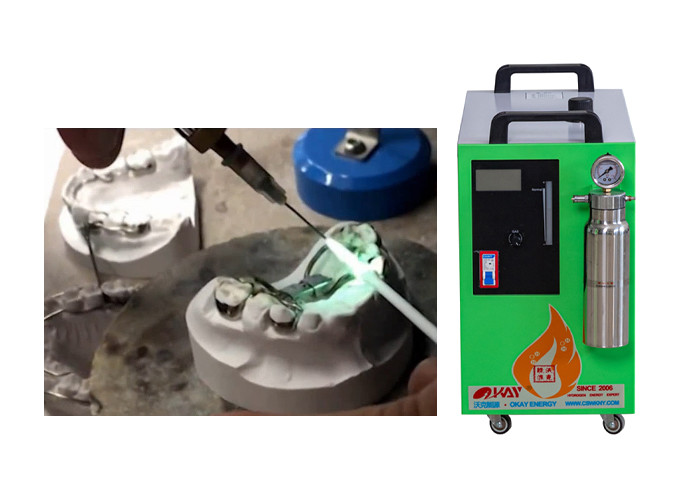

1. Oxyhydrogen flame welding metal fittings and mending sand holes in dentistry.

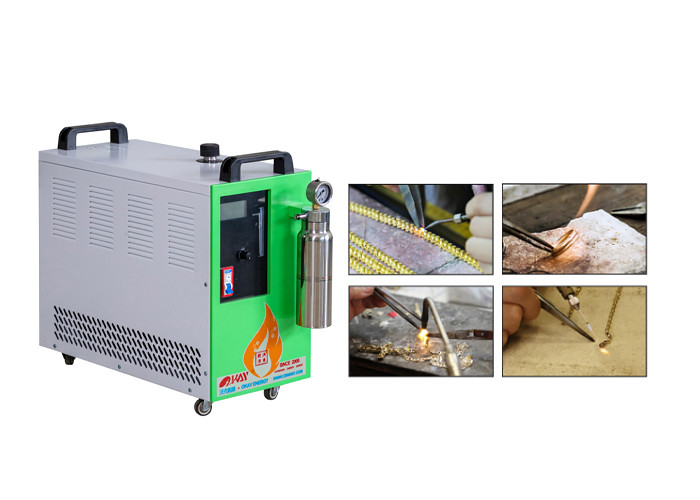

2. It is also repairing and casting tiny sand holes in the process of jewelry casting and repair.
3. Non-carbon flame disinfection and glass sealing.
Technical Parameter
| Model | OH300 |
| AC Voltage(V) | 220/110 |
| Rated Power(KW) | 1.2 |
| Gas Output(L/h) | 0-300 |
| Working Pressure | 0.1-0.14Mpa |
| Max. Water Consumption(L/h) | 0.17 |
| Water Feed | manual |
| Dimension(L*W*H-mm) | 575*246*470 |
| Weight(kg) | 23 |
| Vertilation Space Requirement(mm) | 200 |
Standard Accessories List
1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
