Product Description

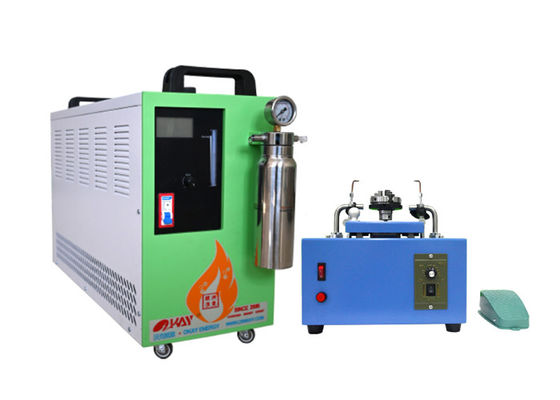

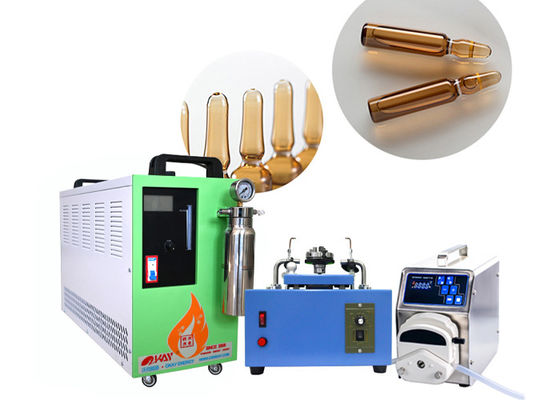

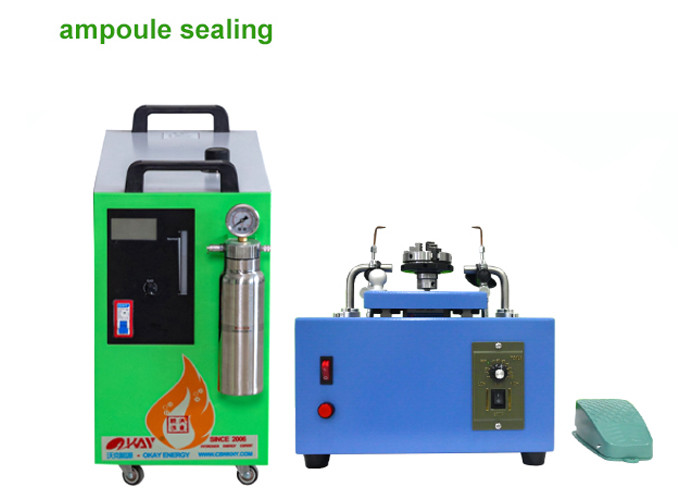

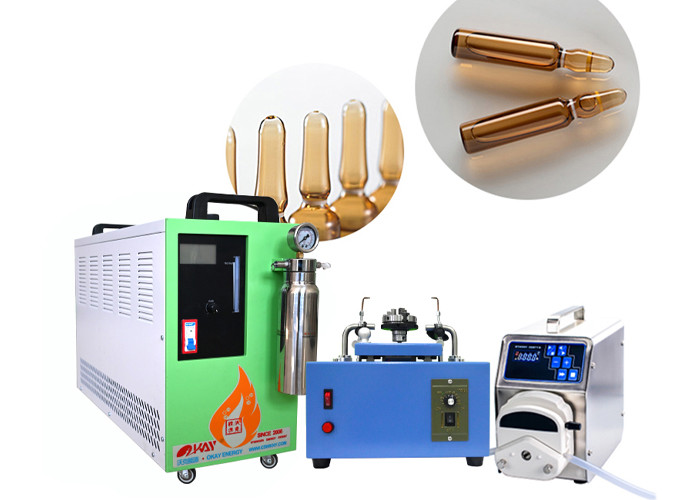

Oxyhydrogen generator as on-site gas supply and rotary sealing device OKRFH-2 adopt pull ampoule sealing method to replace the traditional ampoule sealing machine.
Oxyhydrogen generator uses water as the medium to electrolyze water into H2 and O2 and fires them to form oxyhydrogen flame. The temperature of the oxyhydrogen flame is as high as 2800 degrees so the oxyhydrogen sealing effect and speed are higher and faster than traditional liquefied gas for ampoule sealing.
Okay Energy rotary double flame torch OKRFH-2 is a set of ampoule sealing apparatus especially matched for OH series of oxyhydrogen generators. It is mainly used to seal ampoule bottles within 1-25ml. There are two control functions: pedal and automatic rotating control.
Technical Parameter
| Model | OKRFH-2 | OH400 |
| Product Name | rotary sealing device | oxyhydrogen generator |
| AC Voltage(V) | 220/110 | 220/110 |
| Rated Power | 8W | 1200W |
| Operation Mode | pedal or automatic | / |
| Height Adjustment | 0-150mm | / |
| Dimension(L*W*H-mm) | 290*210*290 | 695*246*470 |
| Accessories | 1*host,1*pedal,2*#C nozzles,1*tweezer,3*wrenches,1*power cord | |
How does it work?
Put the ampoule bottle on the workbench, there are two sets of oxyhydrogen flame melting, pedal or automatic rotating the workbench, and manually seal the ampoule with tweezers. The sealing speed can be about 40~45 pieces of ampoules per minute.
It is also suitable for a maximum 12mm diameter, 15mm length quartz glass tube sealing.
