Product Description
Oxyhydrogen welding machine uses potassium hydroxide(KOH) as the electrolyte and adopts the principle of electrolyzing pure water into hydrogen as fuel and oxygen as a catalyst. Hydrogen is a clean and carbon-free energy. The combustion substance of oxyhydrogen flame is only water vapor. It is green eco-friendly on-site gas generation equipment, no gas cylinder is needed.

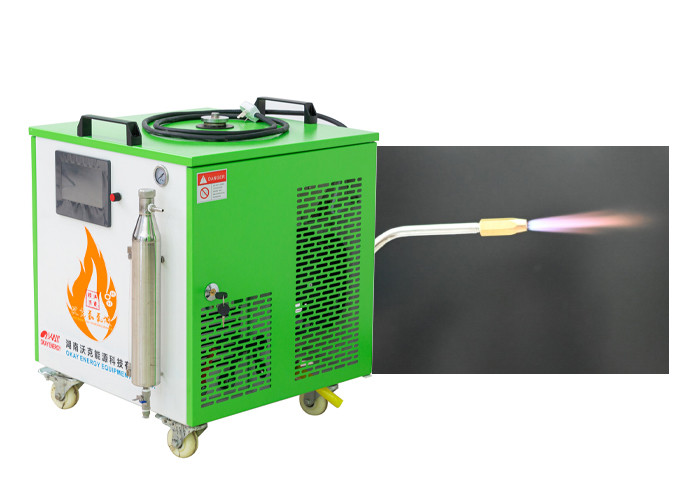

Oxyhydrogen gas is produced on demand at any time and anywhere. Oxyhydrogen flame is concentrated and its temperature is up to 2800℃. Therefore, it can be used for welding and cutting various non-ferrous metals. Oxygen hydrogen welding machine can avoid the process of magnet wire enamel stripping. The solder joint is smooth and full surface.

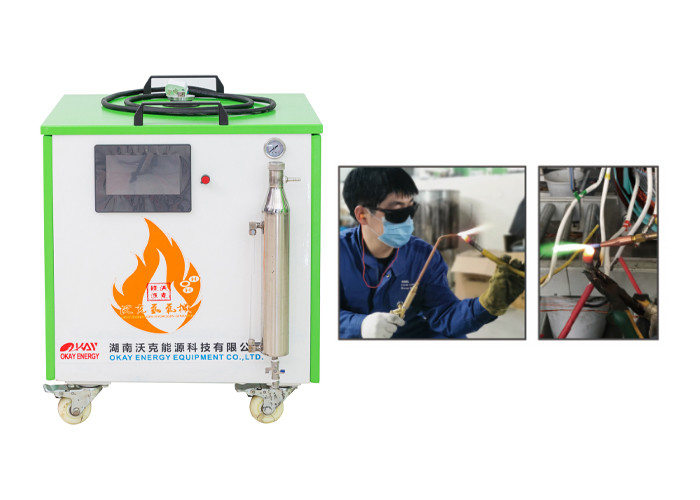

Okay Energy oxyhydrogen welding machine has been successfully applied in the welding process of enameled wire and flat copper wire in the motor industry. It has achieved obvious results in energy saving, working efficiency, and process quality improvement.
Technical Parameter
| Model | OH1000 |
| AC Voltage | 220V |
| Rated Power(KW) | 3.5 |
| Gas Output(L/h) | 0-1000L/h |
| Working Pressure | 0.1-0.2Mpa |
| Max Water Consumption(L/h) | 0.53 |
| Water Feed | manual/automatic |
| Dimension(L*W*H-mm) | 700*600*890 |
| Weight(kg) | 80 |
| Vertilation Space Requirement(mm) | 200 |
Standard Accessories List

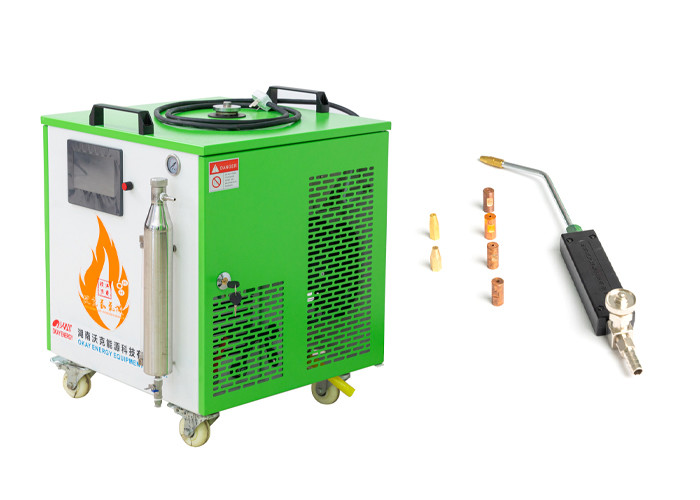

1*electronic flame arrester,1*flame torch, and 3m blue gas tube;
Note: the package does not contain the electrolyte powder(KOH), you can buy it locally.
We can provide a centralized gas supply scheme, special accessories, OEM, or ODM service according to the project.
